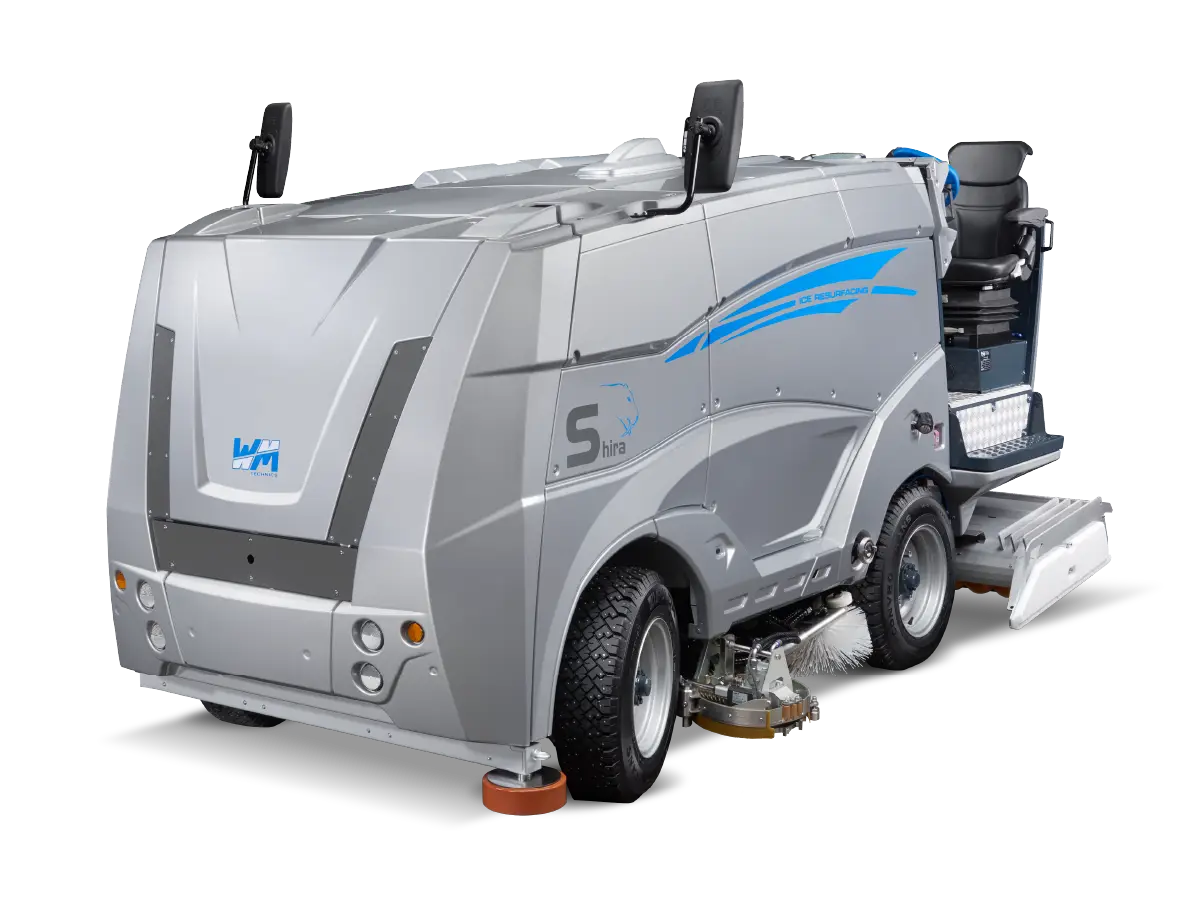

Shira
WM’s powerful ice resurfacer for stadiums suits ice surfaces of 1,800 m².
Powerful drives powered by electric motors and flexible combinations of snow and water tanks: The WM Shira is specially designed for efficient ice resurfacing in stadiums, offering an excellent price-performance ratio. It features a user-friendly control panel that simplifies operation thanks to clear information displays and an automatic mode. Additionally, quick access to all technical components ensures fast and cost-effective maintenance.
Equipped with a market-standard thick blade, Shira handles even the most demanding tasks effortlessly, guaranteeing durability and precision for flawless results. Blade changes take just 5 minutes!
Specifications
| Snow tank volume | 3 m³ – compacted 3.6 m³ |
| Water tank volume | 1,000 l / 1,350 l / 1,750 l + Snow tank-water tank connection 2,000 l / 2,350 l / 2,750 l |
| Blade width | 2,100 mm / 2,300 mm |
| Fields of operation | Pro / heavy-duty |
| Motor | 5 asynchronous motors / Optional 6 asynchronous motors |
| Power rating | 29 kW (31 kW) |
| Water tank | 1,000 l | optional: 1,350 l / 1,750 l |
| Snow tank volume | 3 m³ – compacted 3.6 m³ |
| Transmission | Continuously adjustable electric all-wheel drive |
| Hydraulic oil tank | 50 l |
| Speed | 0 – 13 km/h |
| Tires | 225 / 75 / R16 C 6 rows of spikes |
| Wheel rims | 9″ x 16″ |
Highlights

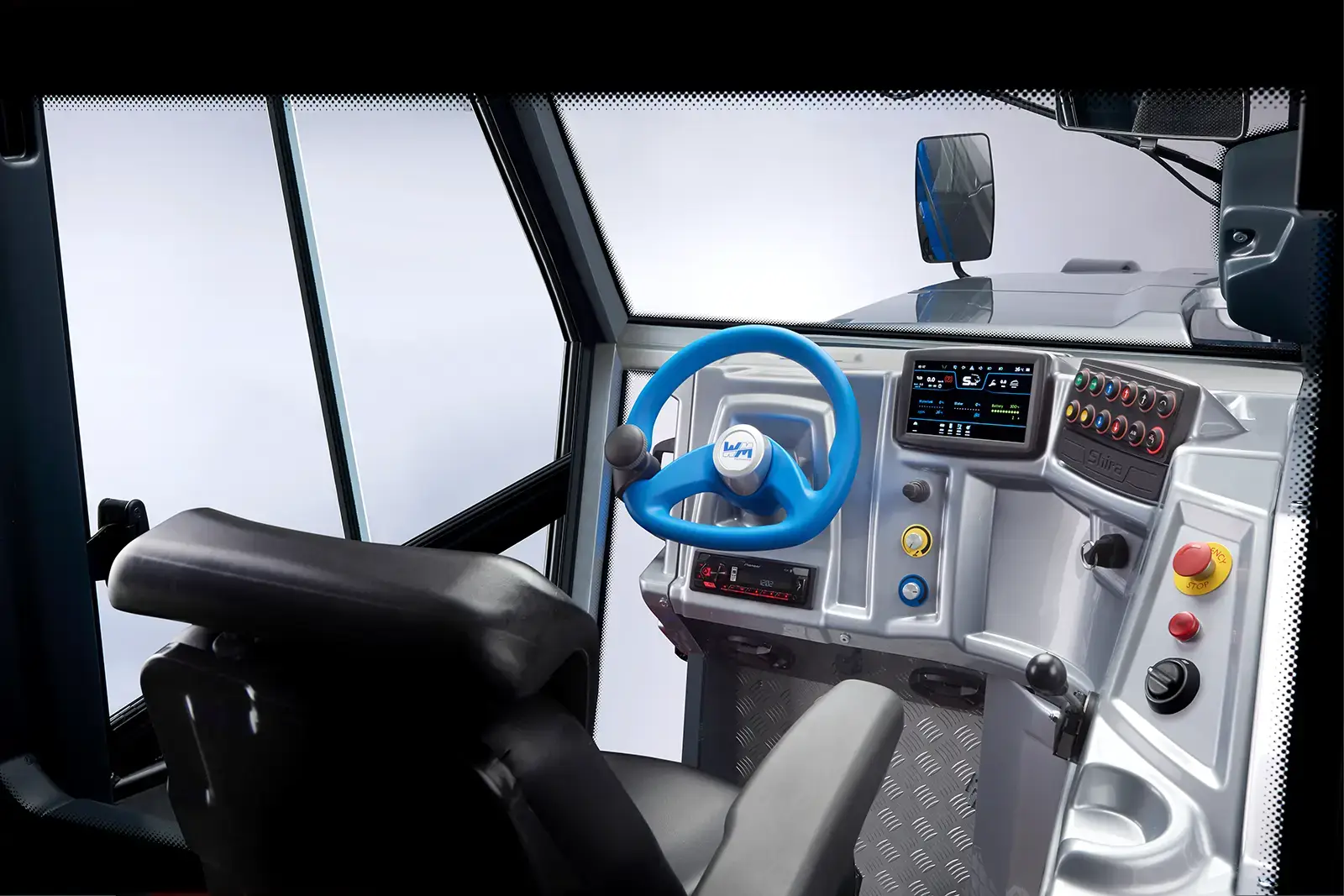

Driver's station
Highlights – Unique comfort, 360° view, max. control
Shira ensures the utmost comfort for the driver. Whether without a cabin or with a fully glazed one, you’ll always have a flawless panoramic view from the driver’s seat.
Cabine
The see-through, roomy cabin, tailor-made for the Shira – equipped with a roof, door, and expansive windows – offers an unobstructed 360-degree perspective and shields you from all weather conditions.
Steps & Seat
Three steps provide easy access. The height-adjustable, cushioned GRAMMER driver’s seat ensures a comfortable seating experience.
Control panel
The control panel allows you to conveniently control essential functions. Pressing the A/M button starts the automatic mode, activating all programmed workflows.
Color display
The high-resolution touch color display gives you an overview of all essential information.

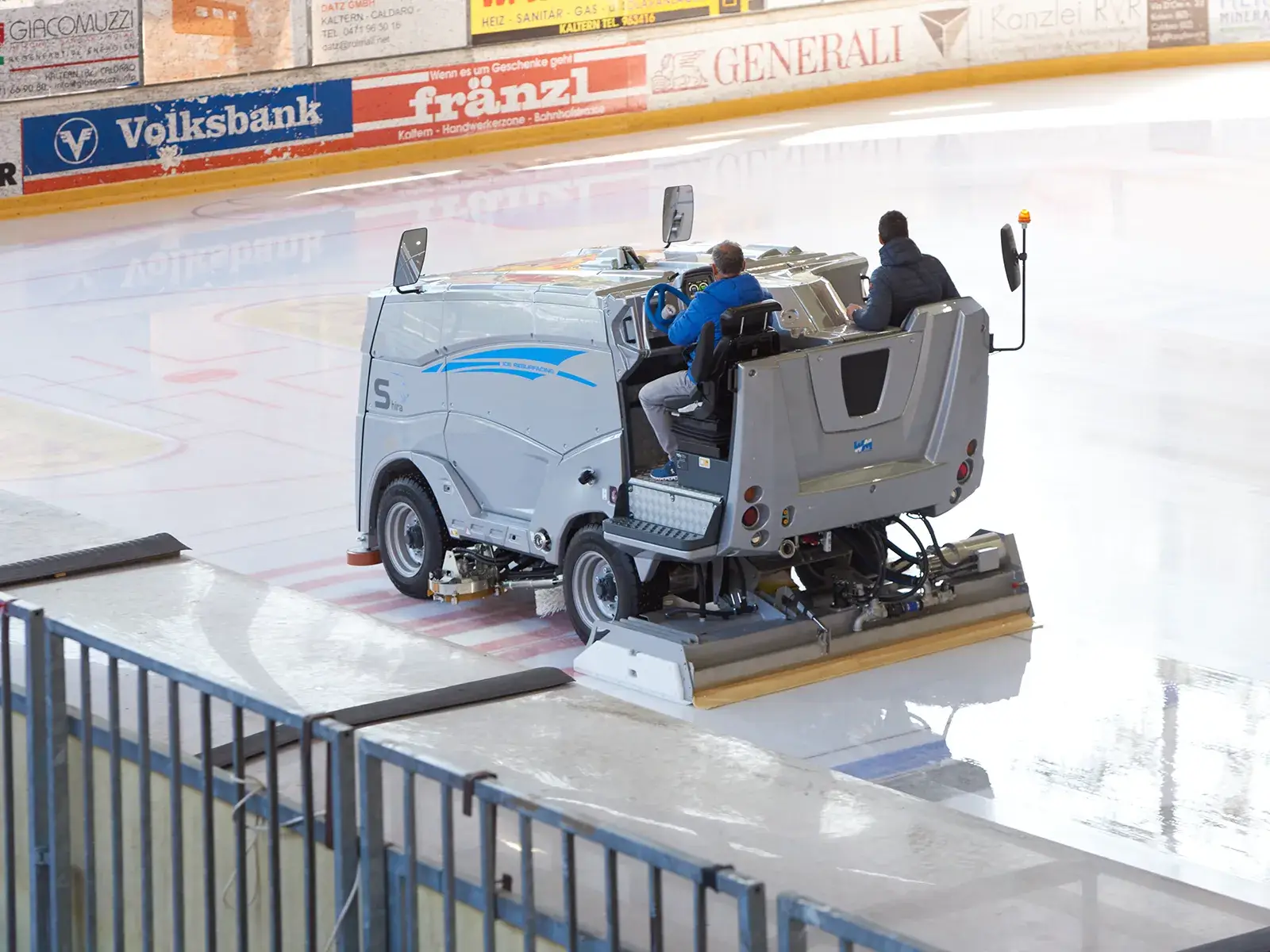

The passenger seat
Highlights – new business opportunities, presenting the job of an ice master.
Anyone wishing to understand the work of an ice master can witness it firsthand from the SUVA-certified passenger seat.
From the machine, during a break, for instance, a fan can observe the playing field of their favorite team from an entirely new perspective. A unique experience to offer fans as part of a contest or a raffle. The passenger seat is always standard, not an optional extra.

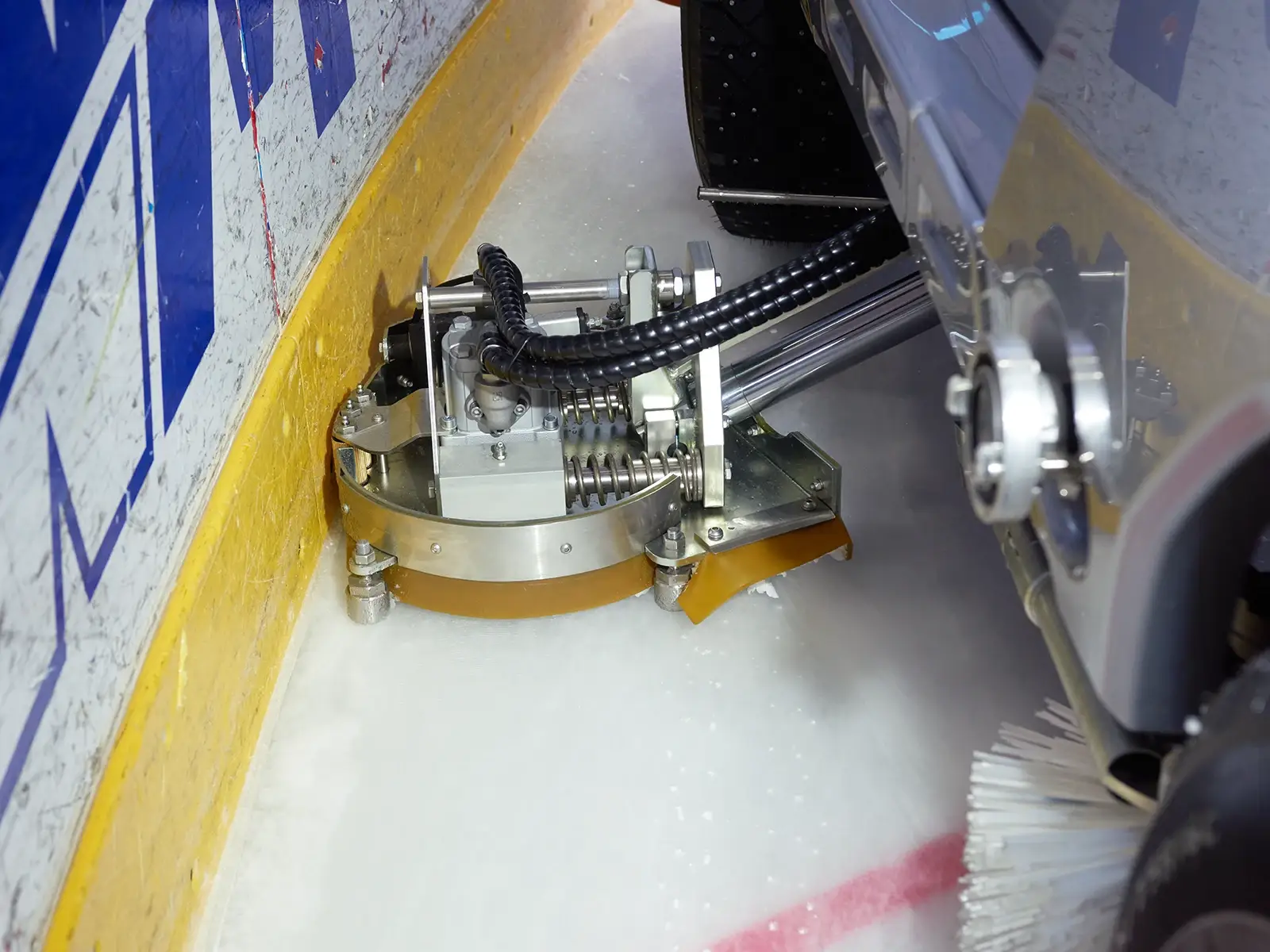

Integrated edger
Highlights – perfect edge fitting, milling & cleansing procedure, horizontal suspension system.
Affixed directly to the Shiras’s frame, the edger provides unparalleled stability and superior performance.
The edger is controlled conveniently and risk-free directly via the joystick. The innovative horizontal suspension system with board guides ensures the edger adapts optimally to the edge contours at a constant milling depth. In addition, excess ice is efficiently and cleanly removed.
The edger is positioned between the axles and in front of the brush, providing excellent visibility from the machine. When not in use, the edger remains discreetly hidden between the wheels. It cuts the ice with extreme precision at an exact 90° angle. This accuracy is ensured by the edger’s direct attachment to the machine’s frame, maintaining a consistently perfect angle throughout the entire process.

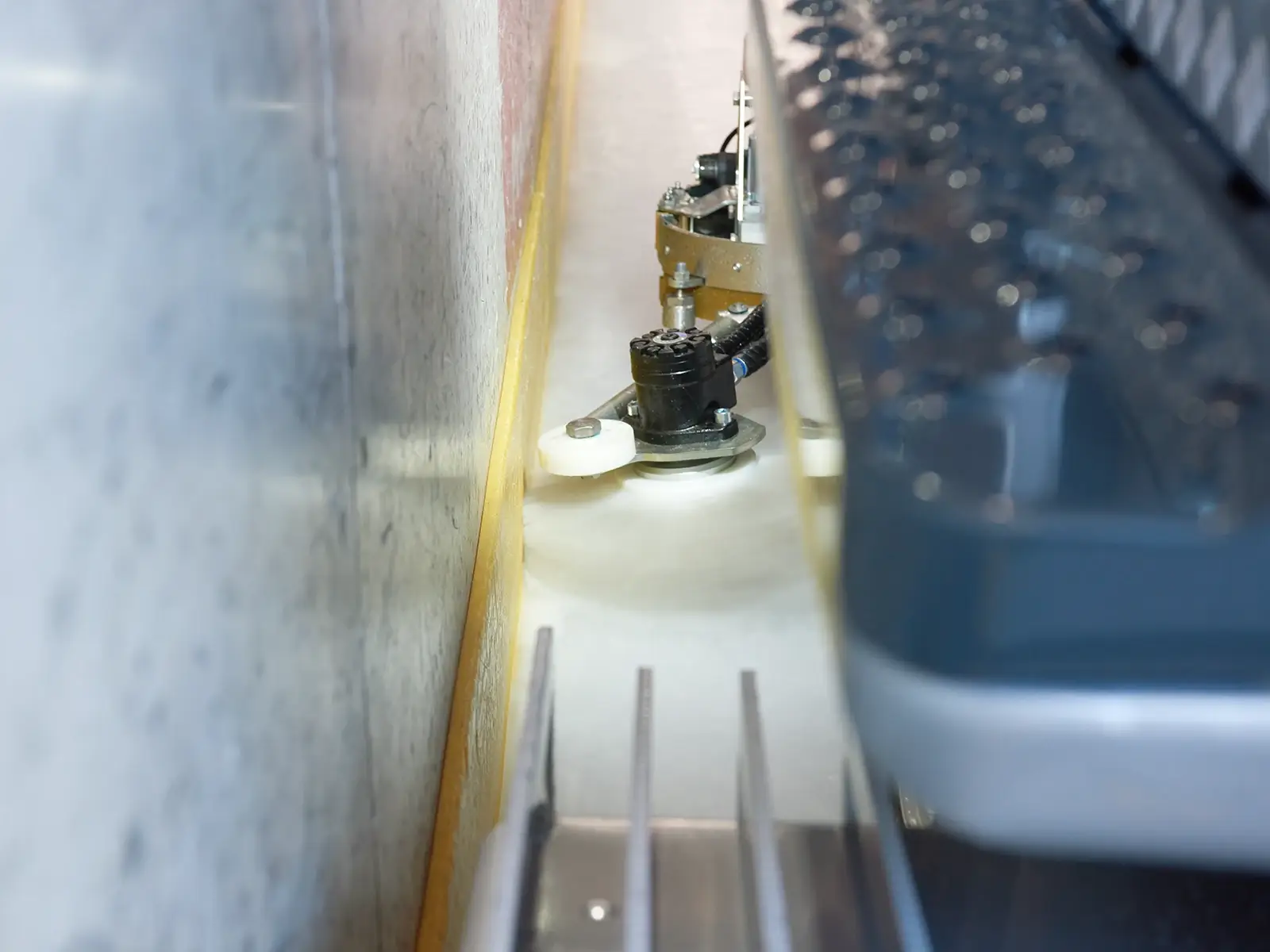

Flexible brush
Highlights – precise with optimum pressure, indestructible, quick and easy.
A robust brush for tackling harsh snow residues; fuss-free upkeep with its removable brush head.
Mounted on an arm, the brush can be operated hydraulically. An additional joint, complemented by gas springs and a guiding roller, ensures it traces the edge with pinpoint accuracy and the proper pressure, even during swift movements. Crafted for resilience, the brush arm can withstand passage at top speeds, even with an open dasher board. Maintenance is a breeze; the brush head can be quickly swapped out with the simple turn of a screw.

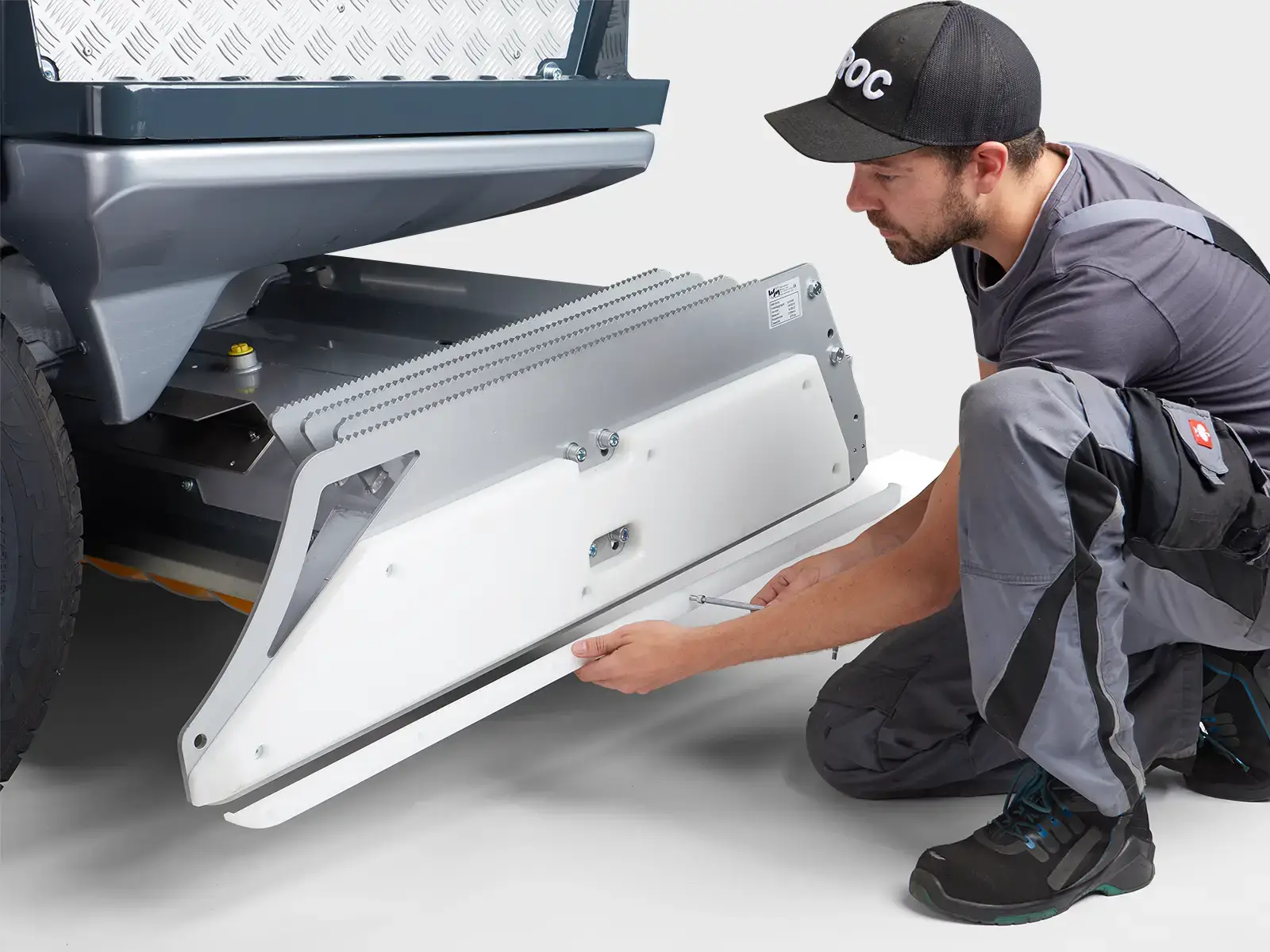

High-performance sledge
Highlights – simple, quick & precise, low risk of injuries, enhanced ice quality.
Discover the high-performance sledge from WM technics combining innovation and efficiency.
Our design ensures seamless ice resurfacing for the ultimate ice experience – where precision meets quality.
Ice cleaning system
Our perfectly positioned nozzles ensure the recently planed surface is cleaned right after the blade. With the suction bar spanning the entire length of the sledge, the contaminated water is consistently collected along the entire sledge and safely transported to the snow tank.
Replaceable runners
Our sledges come with 2 plastic runners that ensure minimal resistance. Wear and tear? Simple replacement in just a few steps for continued performance.

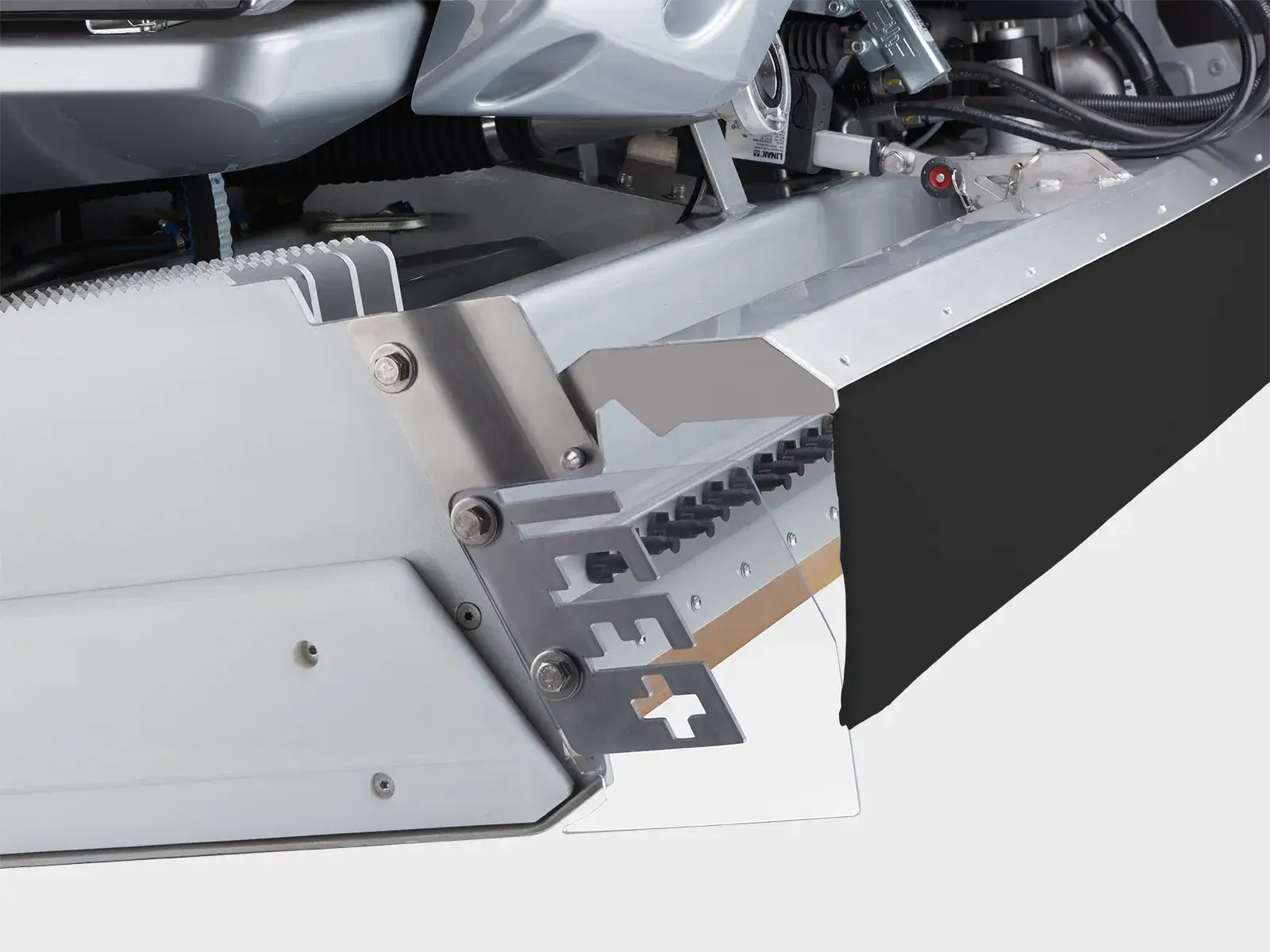

ICEplus
Highlights – optimized time management, easy handling, smoother surfaces.
Opt for spraying over pouring – forget the towel: ICEplus’s low-pressure nozzles deliver denser ice that’s game-ready in no time.
Ditch the towel
Gone are the days of using a towel for distribution; with ICEplus, water is directly sprayed onto the surface, enhancing efficiency and doing away with towel wear.
Compact ice quality
With the introduction of fine water particles, minimal air gets trapped within the ice, leading to a tighter, rapidly solidifying ice surface, which is ready for use sooner.
Control with Control Panel
The intuitive control panel emphasizes the easy operation of the Shira, allowing you to manage the machine smoothly.
ICEplus Flexi
Combine the benefits of the modern water spray system with the tried-and-true towel method. Switch between the two techniques at the touch of a button and experience ultimate flexibility.

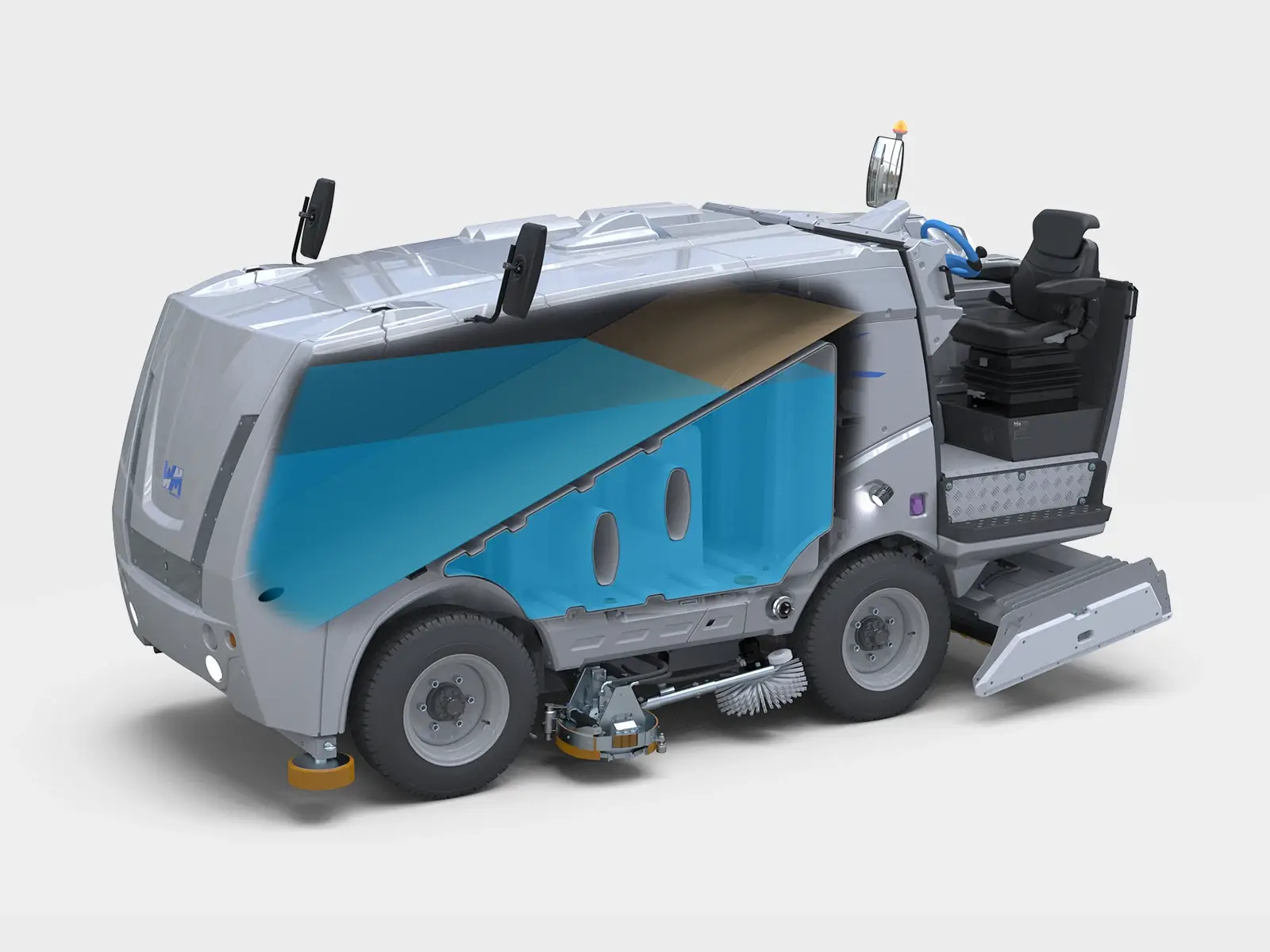

Snow & water tank
Highlights – quick emptying, even in adverse weather conditions, teflon-finished surface, safety.
When it comes to making ice or using a water sprayer, you will need a lot of water. Thankfully, Shira has thought of that! We’ve designed it so that the water and snow tanks can merge into one tank, giving you a whopping total of over 2 000 liters of water.
Snow tank-water tank connection
No more standing in cold water and tiresome tugging on hoses: All operations can be carried out from the comfort of the driver’s cab.
Example: 1 750-liter water tank + 1 000-liter snow tank = 2 750 liters of water
Tilting function & system for snow removal

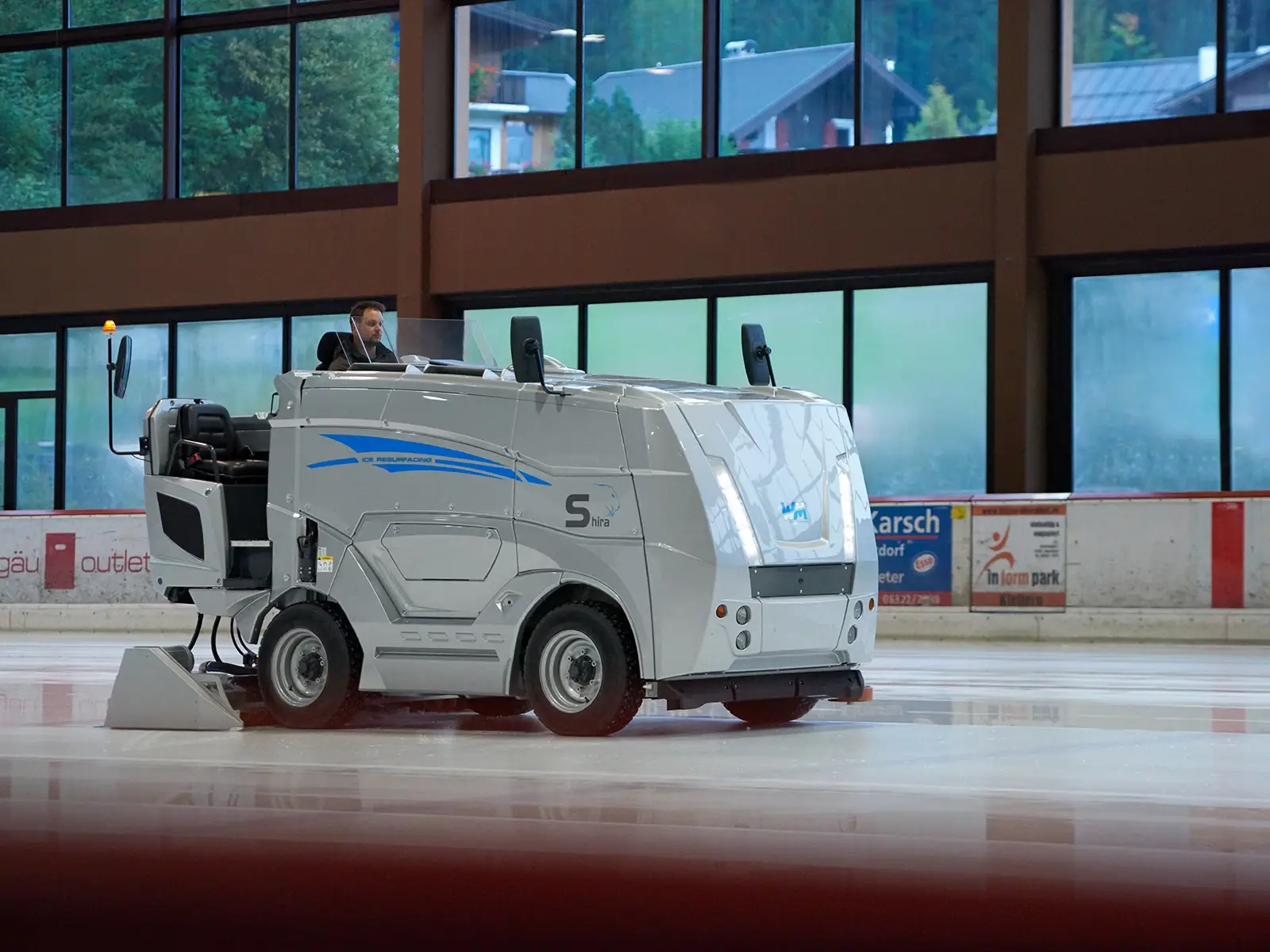

Three braking system
Highlights – innovative braking mechanism, maximum safety, the machine operates more autonomously, optimized consumption.
Crafted uniquely for the Shira, our braking technology blends the mechanical braking approach with energy recuperation – the hallmark of a true electric vehicle. Explore our groundbreaking system.
Electromagnetic recuperation
By harnessing the energy recovery function of the electric drive system during movement, electric power is regenerated for the battery. This technology significantly boosts the ice resurfacer’s operational range and reduces the reliance on secondary braking systems. The system affects all four wheels.
Service drum brake system
For added braking capability, especially on sloped terrains like ramps, the machine comes with drum brakes on two wheels, with the option for all four. Each wheel’s braking force stands at 3,800 Nm. A hydraulic brake booster enhances the braking strength.
Automatic Holding Brake
Targeting both rear wheels, it operates via a spring mechanism. It automatically activates once the machine is shut down, ensuring no unintended movement. It exerts a braking force of 4 000 Nm on each wheel.

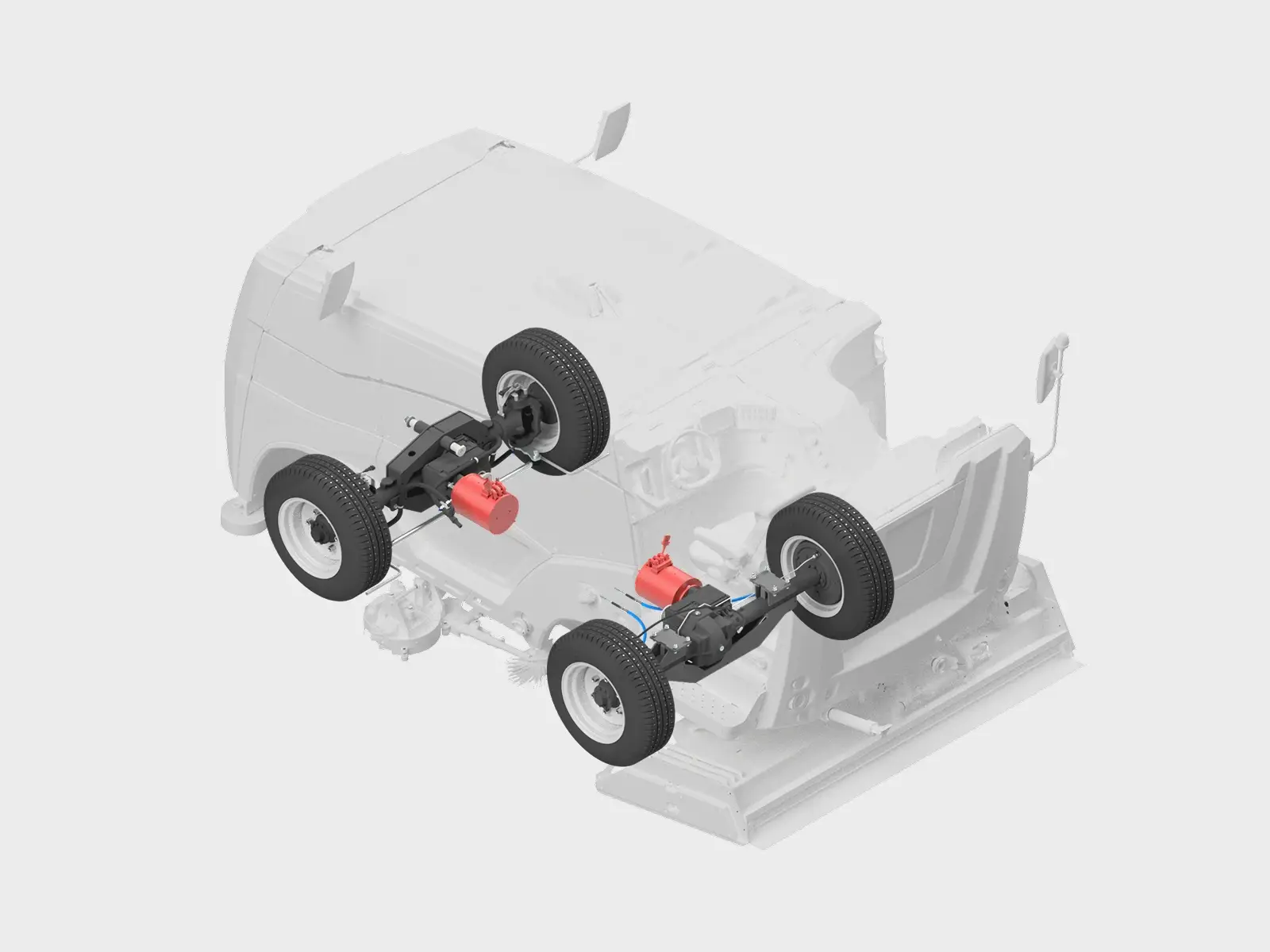

Dual drive
Highlights – optimal traction on ice, maximum safety, energy efficiency.
Dual Drive is an intelligent control system that guarantees optimal traction on the ice by ideal power distribution between the front and rear axles.
With intelligent speed and torque control, even tight turns are handled without drivetrain stress, offering perfect driving dynamics and excellent energy efficiency.
iFePO4 lithium battery
Highlights – higher performance, eco-friendly solution, optimized balance.
LiFePO4 batteries deliver robust performance while being eco-friendly, largely recyclable, and without harmful heavy metals. Installed in Shira, they stand as an eco-optimized solution meeting top-tier demands.
Performance
The lithium iron phosphate battery not only ensures extended longevity but also provides a consistent and reliable power supply.
Sustainability
LiFePO4 batteries are free from toxic heavy metals and are almost 100% recyclable, with a lifespan of 3 to 4 times as many charging cycles as lead batteries.
Center of gravity
Our centrally and deeply positioned battery ensures maximum stability and optimizes the overall balance of the machine.

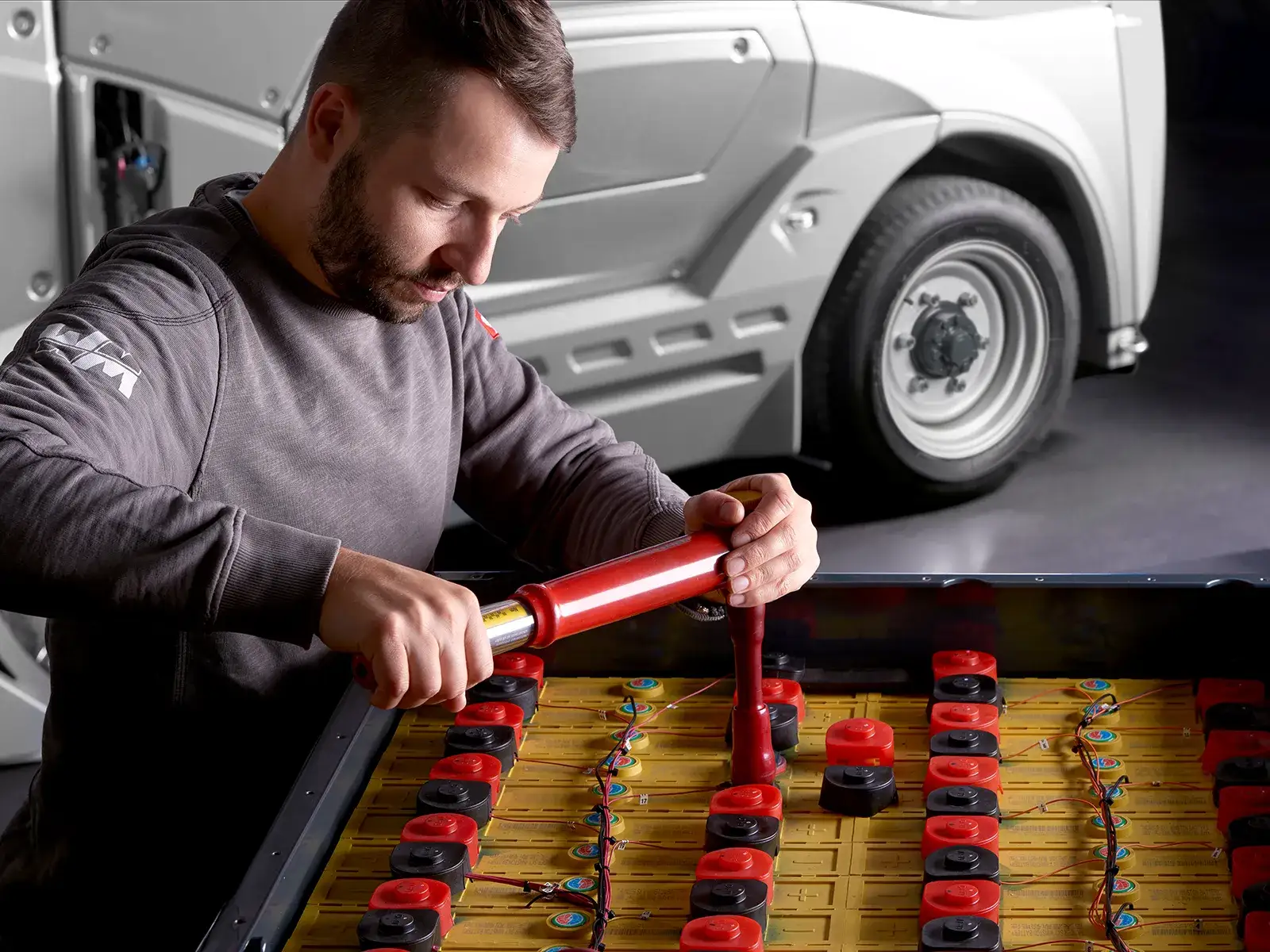

In-house Assembly
Battery packs are tailored explicitly to machine requirements and assembled in-house, ensuring quality and adaptability.
Optionals
Water dosing & wash system
Water pump
The water pump supplies the water dosing system at the sledge and the ice washing system with water. It draws water from the tank and delivers it to the machine at a constant pressure, regardless of the water level in the tank. The pump provides the exact amount of water the machine requires based on various parameters (driving speed, steering angle, etc.). Unique feature: a single pump supplies all water-consuming components in the machine.
Advantage
The water application adjusts to the machine’s speed and steering angle, independent of the tank’s water level. Manual adjustment of the water dosing remains possible at any time.
Multijet ice wash system with suction ledge
Required equipment: water pump
In the sledge, located behind the planing blade, is the ice washing system. Nozzles spray clean water onto the freshly planed ice surface, washing away snow remnants, hair, skin particles, sand, or dust from the ice grooves. A rubber lip collects the dirty water at the end of the sled, and a suction pump draws it through the suction ledge positioned in front of the rubber lip and transports it to the snow tank.
For outdoor rinks, in case of rain, the suction pump can be used to remove rainwater from the ice surface through the suction ledge. It’s essential to ensure there is a sufficient amount of rainwater to avoid damaging the pump.
The ice washing system can maintain lightly used ice surfaces without requiring additional water. This allows the ice surface to be used immediately and reduces energy consumption for cooling.
Advantage
Perfectly clean ice is guaranteed. Any damage to the ice is cleared of snow remnants and dirt using water nozzles. The dirty water is suctioned from the ice surface with the suction ledge. Once the ice surface is clean, you can rebuild the ice with the towel or ICEplus. This results in more transparent ice, making advertising inserts more visible. Additionally, the faster bonding process of the new ice layer helps save energy.
Screw conveyor wash system vertical
Required equipment: water pump
The screw conveyor wash system is supplied with water from the machine’s central water source. Water is sprayed along the entire length of the screw channel, thoroughly cleaning the screw conveyor from end to end. This wash system can be activated independently during operation, whether the machine is moving or stationary, with the sledge raised or lowered, and regardless of whether the screw conveyors are rotating or not.
Advantage
If the screw conveyors start to clog, you can clean them effortlessly with the push of a button on the display. There’s no need to stop—the ice resurfacing continues seamlessly. This function is available at any time, whether you’re on the ice or in the garage.
Screw conveyor wash system horizontal
Required equipment: water pump
The screw conveyor wash system is supplied with water from the machine’s central water source. Water is sprayed along the entire length of the screw channel, thoroughly cleaning the screw conveyor from end to end. This wash system can be activated independently during operation, whether the machine is moving or stationary, with the sledge raised or lowered, and regardless of whether the screw conveyors are rotating or not.
Advantage
If the screw conveyors start to clog, you can clean them effortlessly with the push of a button on the display. There’s no need to stop—the ice resurfacing continues seamlessly. This function is available at any time, whether you’re on the ice or in the garage.
Snow bin wash system
Required equipment: water pump
The vehicle’s central water supply routes water to the snow tank wash system. Water pipes attached to the three outer sides of the snow tank spray the outer walls at the press of a button and wash away all residual snow.
Advantage
Snow is cleared from the driver’s cab to ensure it is kept clean and in good condition. In particularly stubborn conditions, such as extreme calcification or cold, the wash system helps to remove all snow from the tank.
Wheel wash system with steering
Required equipment: water pump
The wheel wash system is supplied with water from the machine’s central water supply. Steering spray elements clean the two front wheels, while the spray elements for the rear wheels are mounted on the sledge.
Special feature: The wash position is located close to the ground, where the tires pick up the most dirt. This means the dirt is washed off before it can contaminate the machine. Clean tires help keep the ice surface at the entrance spotless.
A cleaner ice surface reduces wear on the planing blades, extending their lifespan.
Advantage
Clean ice benefits not only the athletes but also extends the life of the planing blades, saving on costs. Activating the steering wheel wash system before entering the ice efficiently protects the surface from contamination.
Water application
Towel lifter automatic
The classic ice resurfacing method with enhanced towel protection: The towel only touches the ice surface during water application and is lifted at all other times. This prevents freezing while the machine is stationary and keeps the towel clean from ground contact. As a result, the towel stays in better condition and lasts longer.
Advantage
Efficient water distribution is maintained over extended periods of time. At the start of resurfacing, you drive the first few meters without using the towel, only lowering it onto the snow-free surface. This keeps the towel free of snow, ensures even water application, and immediately optimizes the ice quality. When the ice resurfacer stops, the towel automatically lifts, preventing it from freezing to the surface.
ICEplus
Required equipment: water pump
The ICEplus system operates without a towel: Water is sprayed directly onto the ice surface via nozzles. The water freezes faster, filling in deep grooves more effectively, and the transitions between planing paths are smooth. Using low-pressure technology minimizes spray mist, while flaps on the sides of the sledge prevent water droplets from reaching the already resurfaced lane.
Advantage
A brilliant, mirror-smooth ice surface! The innovative nozzle system applies water without a towel, ensuring it settles better in deep grooves.
The low-pressure system minimizes spray mist, preventing increased humidity inside the ice rink. The already resurfaced lane remains unaffected by stray water droplets. The faster drying time also enhances energy efficiency.
ICEplus Flexi
Water spraying system with automatic towel lifter
Required equipment: water pump
Combining an automatic towel and nozzle system gives you maximum flexibility in ice resurfacing. All components are securely mounted on the sledge, allowing you to choose between using the nozzle or the towel for resurfacing at any time. A simple push of a button on the joystick is all it takes.
Water sprayer
The water sprayer features a high-performance pump integrated into the machine and a rear-mounted spray nozzle. It distributes a large volume of water evenly across the ice in no time. Controlled effortlessly from the driver’s station, both the water flow and spray range can be continuously adjusted via a dial while on the move.
With a newly designed spray nozzle and optimized droplet shape, the system ensures water is applied in large droplets with minimal air bubbles, making ice building and leveling a breeze. After use, the spray nozzle can be easily detached and stored with just one hand.
Advantage
Our motto: “No steps on the ice.” The water sprayer allows you to build the ice comfortably and safely from the machine, leaving wet feet in the past. The redesigned nozzle ensures an ideal spray pattern and droplet size. You can adjust the water flow and spray height directly from the driver’s station. Large droplets fall smoothly onto the surface, creating an even ice layer without air pockets. The sprayer can also be used to level the ice.
Pro-tip for flawless ice: Use the water sprayer 3 to 4 times a week after the final resurfacing in the evening for perfectly smooth ice.
Overview & security
Side mirror front left
The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.
Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.
Side mirror front right
The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.
Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.
Heated mirrors
Acoustic distance warning system front
Four front-mounted distance sensors alert the driver to obstacles in front of the machine via a display at the driver’s station and an audible warning signal.
Advantage
No more collisions! In tight spaces or near obstacles, the acoustic distance warning helps you maneuver and park precisely, avoiding damage to the machine.
Front camera
The front camera is built into the machine and displays live footage on a screen at the driver’s station. Upon request, a recording function can also be added.
Advantage
In areas with limited visibility, the front camera provides extra clarity, enhancing safety.
Rearview camera
The rearview camera is installed at the back of the machine and displays live footage on a screen at the driver’s station. A recording function can be added upon request.
Advantage
You get full visibility of the machine’s rear without needing to turn your head.
Brake system, front axle
In addition to the brake system on the rear axle, 2 Knott drum brakes with a secondary brake system are fitted on the front axle. Brakes are applied, as always, by the brake pedal. The brake system has a hydraulic brake booster.
Advantage
On the rare occasion it’s needed, the 4-wheel brake system boosts the vehicle’s braking power on extremely steep ramps.
Dasher board processing
Edger
Galvanised steel, spring borne with electric height adjustment
The edger is mounted on an independent arm attached to the machine frame, separate from the brush. It has a diameter of 35 cm, is equipped with 12 reversible blades, and is made from stainless steel. Controlled from the driver’s station, the edger is extended, retracted, and activated via the control panel and hydraulic cylinder. The cutting depth is continuously adjustable using a dial. With its 3 guide rollers and 5 cm of spring travel, the edger adapts perfectly to the contour of the boards, leaving a clean, 35 cm wide strip where the sled runner follows. The WM edger is a standout feature known for its robust and durable construction.
Advantage
Our motto: “No steps on the ice.” The ice near the boards can be prepared quickly, comfortably, and safely for the next championship game, keeping your feet dry. The cutting depth can be adjusted from the driver’s station (up to -6 mm). The edger can easily shave ice bumps on the rink.
After use, the edger is retracted.
Both the brush and edger can be used separately or simultaneously.
Comfort
Windshield made of real glass with wiper system
The glass windshield is a stylish, professional solution to protect the ice master from cold driving winds. The integrated wiper and washer system ensures clear visibility.
Advantage
The windshield shields you from cold winds, providing a comfortable and neat driving experience.
Cabin with panoramic windows
Shira is the first ice resurfacer designed with a cabin. The result is a sleek and convenient solution: lightweight aluminum frames support the panoramic windows for clear all-around visibility. The large cabin door with a sliding window ensures easy entry and exit.
Advantage
The cabin protects you without hindering your driving. Large panoramic windows provide clear 360° visibility, offering full protection from cold and moisture while ensuring maximum driving comfort.
Cabin heating
The powerful electric cabin heater quickly warms the driver’s cabin to a comfortable temperature. Warm air is evenly distributed throughout the cabin via strategically placed air vents. The heating performance is adjustable in three levels.
Advantage
Resurfacing ice in a T-shirt? In the heated cabin, it’s entirely possible. The air vents spread warmth evenly across the cabin, and you can choose between three heat settings for maximum comfort.
Driver‘s seat heating, seat pad
With the push of a button on the dashboard, the driver’s seat is electrically heated, warming the seat cushion for optimal comfort.
Advantage
A heated driver’s seat ensures a comfortable working experience, even in freezing temperatures. The seat heating is available for machines with or without a cabin.
Radio with 2 x 10 cm speakers
Acquastop valve
The electrically controlled Acquastop valve is installed in the water line and regulates the filling of the ice resurfacer in the garage. Installation is carried out by the ice arena’s professional staff. A cable from the ice resurfacer controls the Acquastop valve. The ice master sets the desired water tank level on the display. Once the specified level is reached, the machine stops filling and shuts down to save energy.
Advantage
No more wet floors in the garage! The Acquastop valve reliably fills the water tank to the desired level. After filling, the machine automatically shuts off, preventing water overflow and saving both water and energy.
Remote maintenance
Connect
WM Connect is an all-in-one data tool, communication assistant, and e-shop. Analyse and optimize your machine’s resource consumption to optimize your budget planning. Maintain a consistently high level of ice quality through data analysis and controlled application of ice resurfacing implements.
Automatic status messages enable you to monitor the status of your machine at all times. Provide your service staff with over-the-air direct access to resolve problems or carry out software updates. Access the interactive workspace and order spare parts quickly and easily.
Lightning
Low-beam headlights
High-beam headlights with parking lights
Tail lights, parking light & brake light
Reversing lights
Turn signal front, rear & side
Complete lighting system for compliance with road traffic regulations
LED daytime running light
RGB underbody illumination
The underbody lighting, controllable from the cabin, adds a unique aesthetic touch to the machine. You can change the color (RGB) with the push of a button. If you’re looking to liven up the atmosphere, the party mode offers fast-changing, flashing colors. In autopilot mode, the underbody lighting indicates the machine’s current task.
Advantage
With the underbody lighting activated, the machine appears to glide over the ice, drawing full attention—not just during events. New: the party mode for special lighting effects.
Personalization
Color change body cladding 1 color
Color change body cladding 2 color
Wrapping
Service
Battery trolley
The pallet truck with WM attachment enables safe, easy, and quick battery pack removal. We recommend this option for lead-acid batteries during annual maintenance and inspection.
Advantage
The battery trolley simplifies the maintenance and inspection of lead-acid batteries. The battery can be swiftly and comfortably removed from the ice resurfacer, with one person completing the task in less than 10 minutes.
Comfort blade change with driver
Traditional blade change, but in about 5 minutes? Yes, it’s possible—with our comfort blade change system with a driver, specifically designed for quick blade replacement. With the system by WM technics, you can easily reach under the sledge with the driver, loosen the screws, replace the blades, and the entire process is done in just around 300 seconds.
Advantage
With WM technics’ comfort blade change system, there’s no need to detach or tilt the sledge. Simply change the blades while the machine is parked.
Tilt mechanism for sledge
The tilt mechanism provides quick and easy access to all sledge components, allowing for simple maintenance. Once the sledge is detached from the machine, you can easily lift it using the tilt mechanism.
Advantage
The tilt mechanism allows you to change the blade quickly and effortlessly. From detaching the sledge to reattaching it with a new blade, the entire process takes no more than 10 minutes.
Spare wheel 16“
The spare wheel has the same dimensions as the machine’s tires. It comes assembled with spiked tires, a tube, and a rim.
Advantage
A flat tire can happen, but with the spare wheel, you’re guaranteed to avoid downtime. Simply remove the hubcap, lift the ice resurfacer with a jack, and change the wheel. You’re back in action in no time!
Lifting jack with bar 10t
Assembly tool for nozzles ICEplus
This mounting tool allows you to quickly and easily screw or unscrew the ICEplus nozzles. Attach it, turn it 90°, and the nozzle is either secured or loosened.
Advantage
The nozzles of the ICEplus system can be fastened or removed quickly and effortlessly.
Sharpener for industrial blades
Spare parts
Blade
Towel felt
Towel terry
Edger knife
ICEplus S nozzle
ICEplus M nozzle
ICEplus L nozzle
ICEplus X nozzle
Why Resurfice?
Authorized Dealer in Baltics
Official partner for WM Resurfacers & Sparx Skate Sharpeners.
Ice Sport Experts
Specialists in resurfacing and sharpening — trusted by rinks across Europe.
Proven, Durable Equipment
Reliable gear from brands known for quality and performance.
