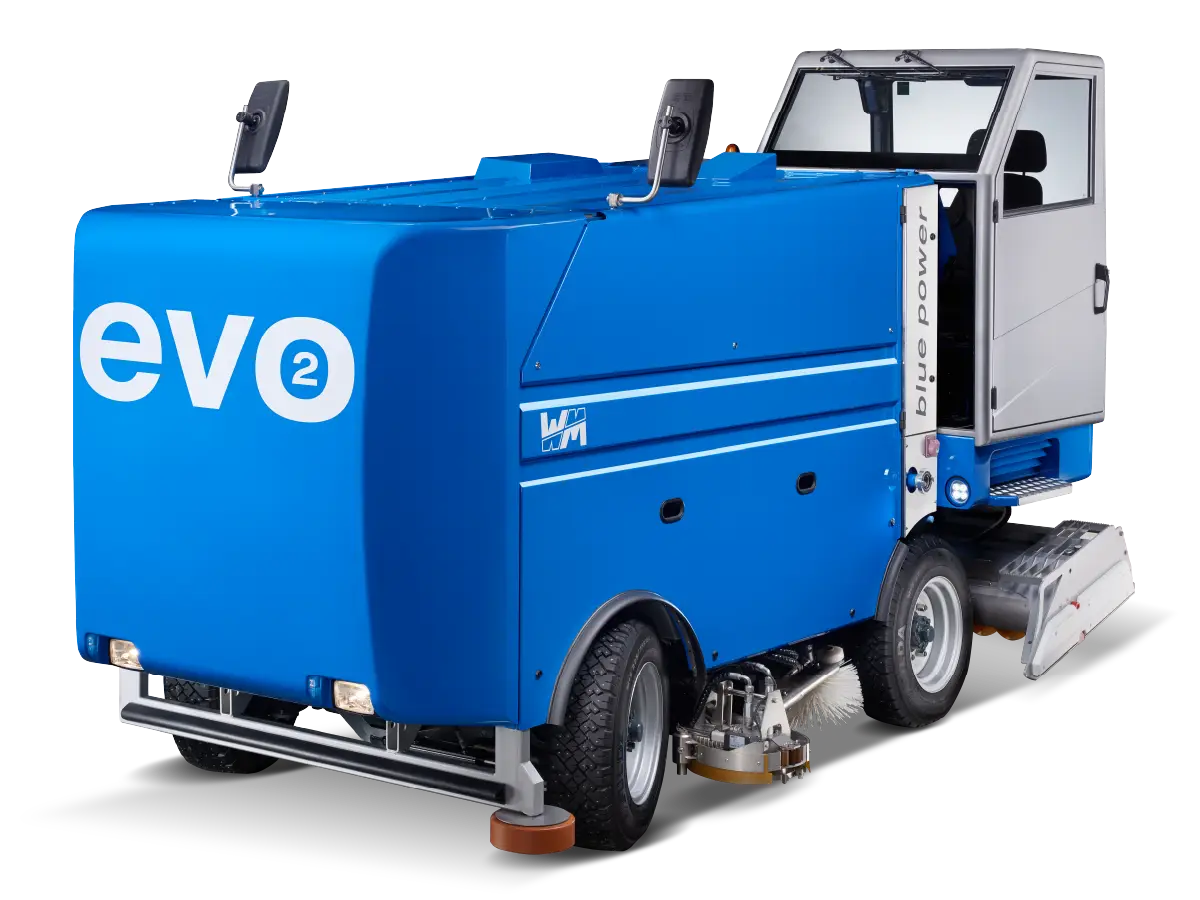

evo²
The powerhouse in ice resurfacing for heavy-duty operations on ice rinks and stadiums with ice surfaces up to 4,200 m².
The powerful evo² handles any task on the ice rink or in the stadium with ease. Its large and combinable snow and water tank capacities allow for flexible use, and it is powered by diesel, gasoline, or electric engines.
The ultra-fast blade quick-change system, intuitive controls, and automatic mode ensure high user-friendliness. Quick access to the engine compartment makes maintenance fast and cost-effective.
Specifications
Electric&Lithium
| Snow tank volume | 4.1 m³ – compacted 5.1 m³ |
| Water tank volume | 1,200 l / 1,400 l / 2,000 l + Snow tank-water tank connection 2,550 l / 2,750 l |
| Blade with | 2,300 mm / 2,500 mm Blade change < 60 seconds |
| Fields of operation | Pro / heavy-duty |
| Engine | 7 asynchronous motors |
| Total power | 33 kW |
| Water tank | 1,200 l optional 1,400 l / 2,000 l |
| Snow tank | 4.1 m³ – compacted 5.1 m³ |
| Transmission | Continuously adjustable hydraulic all-wheel drive |
| Hydraulic oil tank | 50 l |
| Speed | 0 – 13 km/h |
| Tires | 225 / 75 / R16 C 6 rows of spikes |
| Wheel rims | 8″ x 16″ |
Diesel
| Snow tank volume | 4.1 m³ – compacted 5.1 m³ |
| Water tank volume | 1,200 l / 1,400 l / 2,000 l + Snow tank-water tank connection 2,550 l / 2,750 l |
| Blade width | 2,300 mm / 2,500 mm Blade change < 60 seconds |
| Fields of operation | Pro / heavy-duty |
| Engine | Hatz 4H50TICD, 4-cylinder, 1,952 cm³ |
| Power | 55.4 kW / 74.3 hp at 2,800 rpm |
| Torque | 240 Nm / 177 lb-ft at 1,600 rpm |
| Exhaust gas treatment | DOC, DPF with EGR Emission Stage V / EPA Tier 4 final |
| Unloaded weight | 3,750 kg (basic outfit) |
| Water tank | 1,450 l optional 1,600 l / 2,200 l |
| Snow tank | 4.1 m³ – compacted 5.1 m³ |
| Transmission | Continuously adjustable hydraulic all-wheel drive |
| Fuel tank | 52 l |
| Hydraulic oil tank | 65 l |
| Speed | 0 – 16 km/h |
| Tires | 225 / 75 / R16 C 6 rows of spikes |
| Wheel rims | 8″ x 16″ |
Petrol
| Snow tank volume | 4.1 m³ – compacted 5.1 m³ |
| Water tank volume | 1,200 l / 1,400 l / 2,000 l + Snow tank-water tank connection 2,550 l / 2,750 l |
| Blade width | 2,300 mm / 2,500 mm Blade change < 60 seconds |
| Fields of operation | Pro / heavy-duty |
| Engine | Ford MSG 425 – 2,500 cm³ |
| Power | 51.5 kW / 70 hp at 2,600 rpm |
| Torque | 190 Nm at 2,600 rpm |
| Unloaded weight | 3,750 kg (basic outfit) |
| Water tank | 1,450 l optional 1,600 l / 2,200 l |
| Snow tank | 4.1 m³ – compacted 5.1 m³ |
| Transmission | Continuously adjustable hydraulic all-wheel drive |
| Fuel tank | 52 l |
| Hydraulic oil tank | 65 l |
| Speed | 0 – 16 km/h |
| Tires | 225 / 75 / R16 C 6 rows of spikes |
| Wheel rims | 8″ x 16″ |
Highlights

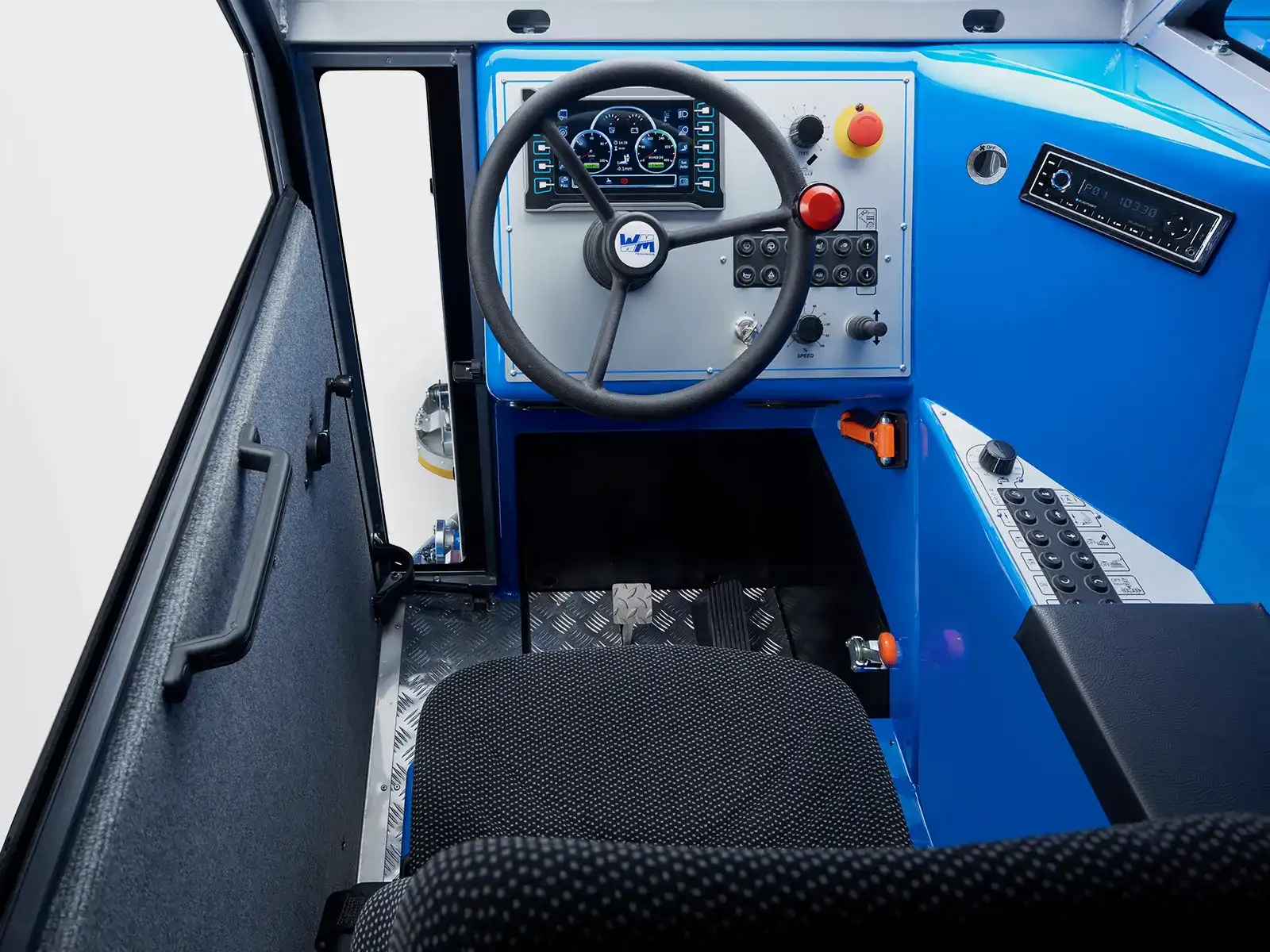

Driver's station
Highlights – outstanding comfort, all-around visibility, maximum control
The evo2 is a guarantee of outstanding comfort for the driver and boasts a full, unobstructed view whether you’re driving cabin-free or with cabin. Three steps provide easy entry to the vehicle.
All important information is clearly visible on the high-definition color display, and all the main functions are keyboard-controlled. At a simple button press, the automatic mode begins all work operations in a pre-defined order, while the height-adjustable GRAMMER suspension seat provides outstanding comfort.
Ultra-light blade
Highlights – simple, fast & precise, low risk of injury,superior ice quality
The evo² quick blade-change system eases working life enormously: blades can be changed in just 60 seconds!
The planing blades are made from special steel, offering an exceptionally long lifespan. A key feature is their lightweight design, weighing only 3.5 kg, making the replacement process quick and safe. As standard, you receive two blades along with accessories delivered in a convenient wooden case.

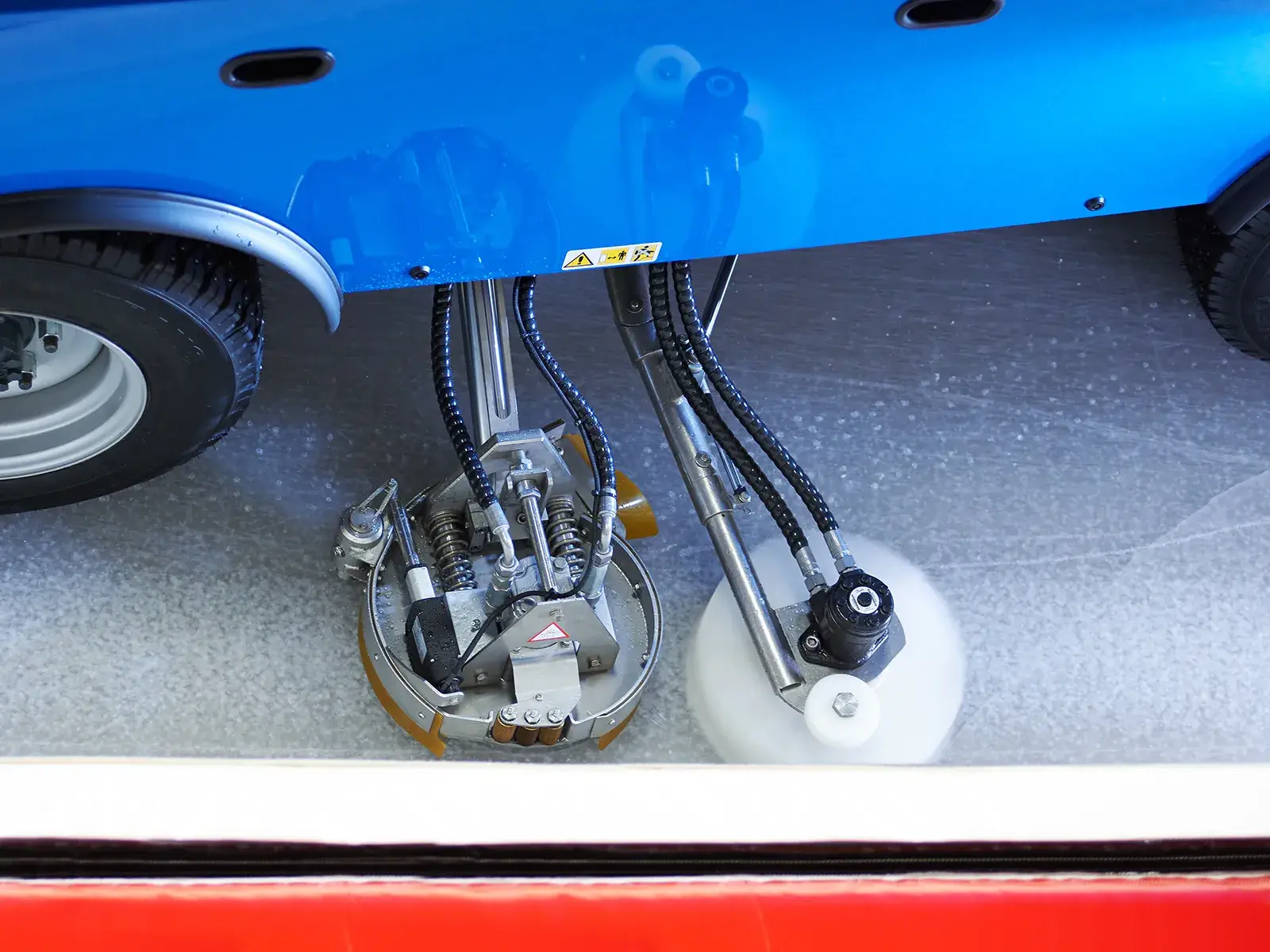

Integrated edger
Highlights – perfect adjustment to the boards, milling and cleaning process, horizontal suspension system
The edger is fixed to the body of the evo², guaranteeing you outstanding stability and performance.
It can be operated easily and safely from the driver’s seat. The innovative horizontal spring-loaded system with a guide wheel ensures that the edger follows the contours of the rink to perfection and planes the ice evenly, rapidly, and cleanly.
Milling and cleaning the ice surface with the swivel brushes can be done in one simple step. The edgers are positioned between the axles and in front of the brush to ensure an unrestricted vehicle overview. When not in use, the edger is stored between the wheels and does not affect operation in any way.

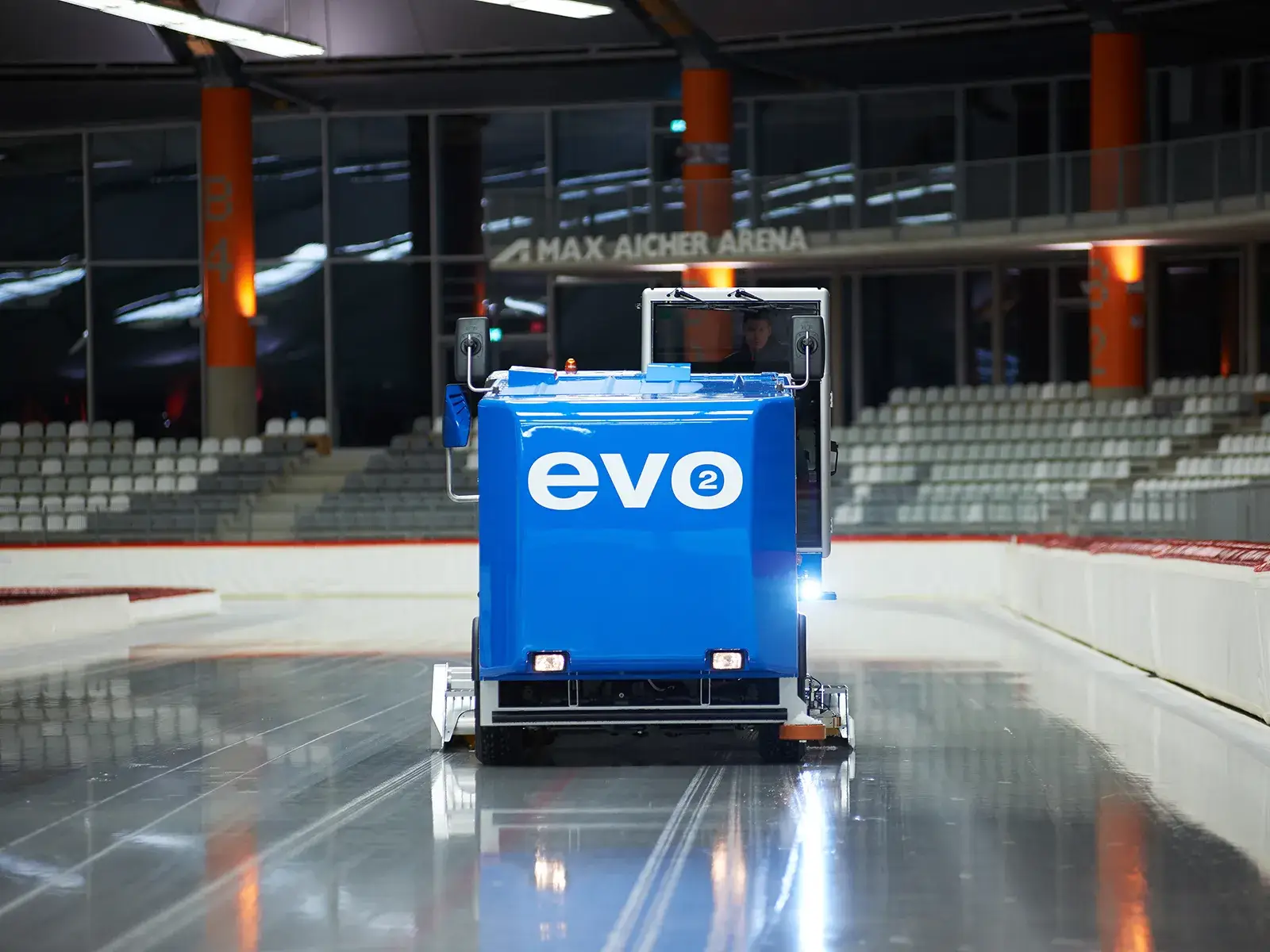

Snow-water tank
Highlights – optimized capacity, consistent & smooth workflow, increased comfort
When building ice or using the water sprayer, more water is a must. The evo² has you covered!
The water and snow tanks can easily be combined into a single water tank with a total capacity of around 2 550 liters. No more standing in cold water or struggling with hoses: all operations are conveniently performed from the driver’s cab, with more than enough water to get the job done.
Example: 1 400-liter water tank + 1 350-liter snow tank = 2 750 liters of water
Maintenance
Highlights – cost-efficient maintenance & repair, easy & quick access to the engine compartment, professional remote monitoring

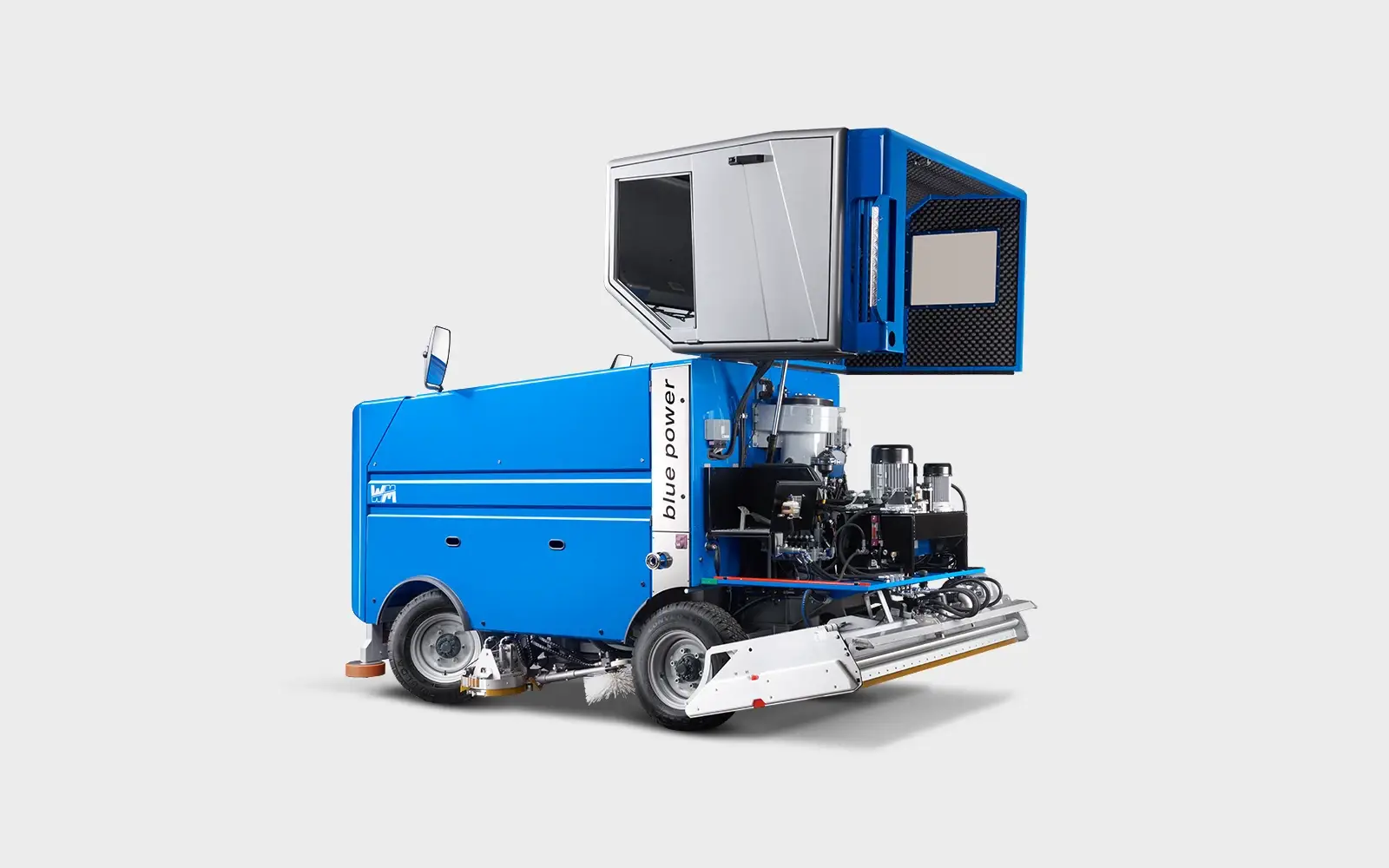

Easy maintenance and low operating costs: simply lift the cabin, and the entire engine compartment is easily accessible.
The technician can work quickly and efficiently, saving both time and service costs. Our team monitors the machine’s status through remote maintenance and resolves any issues. Take advantage of being supported directly by the manufacturer!
Optionals
Wash system
Ice wash system Multijet
In the sledge, located behind the planing blade, is the ice washing system. Nozzles spray clean water onto the freshly planed ice surface, washing away snow remnants, hair, skin particles, sand, or dust from the ice grooves. A rubber lip collects the dirty water at the end of the sled, and a suction pump draws it through the suction ledge positioned in front of the rubber lip and transports it to the snow tank.
For outdoor rinks, in case of rain, the suction pump can be used to remove rainwater from the ice surface through the suction ledge. It’s essential to ensure there is a sufficient amount of rainwater to avoid damaging the pump.
The ice washing system can maintain lightly used ice surfaces without requiring additional water. This allows the ice surface to be used immediately and reduces energy consumption for cooling.
Advantage
Perfectly clean ice is guaranteed. Any damage to the ice is cleared of snow remnants and dirt using water nozzles. The dirty water is suctioned from the ice surface with the suction ledge. Once the ice surface is clean, you can rebuild the ice with the towel or ICEplus. This results in more transparent ice, making advertising inserts more visible. Additionally, the faster bonding process of the new ice layer helps save energy.
Screw conveyor wash system vertical
The screw conveyor wash system is supplied with water from the machine’s central water source. Water is sprayed along the entire length of the screw channel, thoroughly cleaning the screw conveyor from end to end. This wash system can be activated independently during operation, whether the machine is moving or stationary, with the sledge raised or lowered, and regardless of whether the screw conveyors are rotating or not.
Advantage
If the screw conveyors start to clog, you can clean them effortlessly with the push of a button on the dashboard. There’s no need to stop—the ice resurfacing continues seamlessly. This function is available at any time, whether you’re on the ice or in the garage.
Screw conveyor wash system horizontal
Snow bin wash system
The vehicle’s central water supply routes water to the snow tank wash system. Water pipes attached to the three outer sides of the snow tank spray the outer walls at the press of a button and wash away all residual snow.
Advantage
Snow is cleared from the driver’s cab to ensure it is kept clean and in good condition. In particularly stubborn conditions, such as extreme calcification or cold, the wash system helps to remove all snow from the tank.
Wheel wash system with steering
The wheel wash system is supplied with water from the machine’s central water supply. Steering spray elements clean the two front wheels, while the spray elements for the rear wheels are mounted on the sledge.
Special feature: the wash position is located close to the ground, where the tires pick up the most dirt. This means the dirt is washed off before it can contaminate the machine. Clean tires help keep the ice surface at the entrance spotless.
A cleaner ice surface reduces wear on the planing blades, extending their lifespan.
Advantage
Clean ice benefits not only the athletes but also extends the life of the planing blades, saving on costs. Activating the steering wheel wash system before entering the ice efficiently protects the surface from contamination.
Water application
Towel lifter automatic
The classic ice resurfacing method with enhanced towel protection: the towel only touches the ice surface during water application and is lifted at all other times. This prevents freezing while the machine is stationary and keeps the towel clean from ground contact. As a result, the towel stays in better condition and lasts longer.
Advantage
Efficient water distribution is maintained over extended periods of time. At the start of resurfacing, you drive the first few meters without using the towel, only lowering it onto the snow-free surface. This keeps the towel free of snow, ensures even water application, and immediately optimizes the ice quality. When the ice resurfacer stops, the towel automatically lifts, preventing it from freezing to the surface.
Towel support standard
Classic ice resurfacing: water is distributed across the ice using a terry or felt wiping towel. We recommend using a terry towel when the water temperature exceeds 25 °C and felt at lower temperatures.
ICEplus
The ICEplus system operates without a towel: water is sprayed directly onto the ice surface via nozzles. The water freezes faster, filling in deep grooves more effectively, and the transitions between planing paths are smooth. Using low-pressure technology minimizes spray mist, while flaps on the sides of the sledge prevent water droplets from reaching the already resurfaced lane.
Advantage
A brilliant, mirror-smooth ice surface! The innovative nozzle system applies water without a towel, ensuring it settles better in deep grooves.
The low-pressure system minimizes spray mist, preventing increased humidity inside the ice rink. The already resurfaced lane remains unaffected by stray water droplets. The faster drying time also enhances energy efficiency.
ICEplus Flexi
Water spraying system with automatic towel lifter
Combining an automatic towel and nozzle system gives you maximum flexibility in ice resurfacing. All components are securely mounted on the sledge, allowing you to choose between using the nozzle or the towel for resurfacing at any time.
Water sprayer
The water sprayer features a high-performance pump integrated into the machine and a rear-mounted spray nozzle. It distributes a large volume of water evenly across the ice in no time. Controlled effortlessly from the driver’s station, both the water flow and spray range can be continuously adjusted via a dial while on the move.
With a newly designed spray nozzle and optimized droplet shape, the system ensures water is applied in large droplets with minimal air bubbles, making ice building and leveling a breeze. After use, the spray nozzle can be easily detached and stored with just one hand.
Advantage
Our motto: “No steps on the ice.” The water sprayer allows you to build the ice comfortably and safely from the machine, leaving wet feet in the past.
Pro-tip for flawless ice: use the water sprayer 3 to 4 times a week after the final resurfacing in the evening for perfectly smooth ice.
Dasher board processing
Edger
Stainless steel, spring-mounted, and electric height adjustment
The edger is mounted on an independent arm attached to the machine frame, separate from the brush. It has a diameter of 35 cm, is equipped with 12 reversible blades, and is made from stainless steel. Controlled from the driver’s station, the edger is extended and retracted. The cutting depth is continuously adjustable using a dial. With its 3 guide rollers and 5 cm of spring travel, the edger adapts perfectly to the contour of the boards, leaving a clean, 35 cm wide strip where the sled runner follows. The WM edger is a standout feature known for its robust and durable construction.
Advantage
Our motto: “No steps on the ice.” The ice near the boards can be prepared quickly, comfortably, and safely for the next championship game, keeping your feet dry. The cutting depth can be adjusted from the driver’s station (up to -6 mm). The edger can easily shave ice bumps on the rink.
After use, the edger is retracted.
Both the brush and edger can be used separately or simultaneously.
Brush
The brush is mounted on an arm made entirely of stainless steel. It is hydraulically extended, retracted, and powered. An additional joint, combined with gas pressure springs and a board guide, ensures the brush follows the boards with precision and optimal pressure, even at high speeds. The highly robust brush arm is designed to withstand impacts, even when passing through open board gates at full speed. For quick and easy maintenance, the stainless steel brush head can be removed and replaced by loosening just one screw.
Advantage
Open board gates? No problem! The gas-sprung brush arm reacts dynamically and is break-resistant, efficiently handling all challenges.
Overview & security
Side mirror front left
The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.
Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.
Side mirror front right
The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.
Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.
Heated mirrors
Front camera
The front camera is built into the machine and displays live footage on a screen at the driver’s station. Upon request, a recording function can also be added.
Advantage
In areas with limited visibility, the front camera provides extra clarity, enhancing safety.
Comfort
Cabin heating
Driver‘s seat heating, seat pad & backrest
With the push of a button on the dashboard, the driver’s seat is electrically heated, warming both the seat cushion and backrest for optimal comfort.
Advantage
A heated driver’s seat ensures a comfortable working experience, even in freezing temperatures.
Joystick
Radio
Acquastop valve
The electrically controlled Acquastop valve is installed in the water line and regulates the filling of the ice resurfacer in the garage. Installation is carried out by the ice arena’s professional staff. A cable from the ice resurfacer controls the Acquastop valve. The ice master sets the desired water tank level on the display. Once the specified level is reached, the machine automatically stops filling and shuts down to save energy.
Advantage
No more wet floors in the garage! The Acquastop valve reliably fills the water tank to the desired level. After filling, the machine automatically shuts off, preventing water overflow and saving both water and energy.
LED headlights
Tail lights
RGB underbody illumination
With the underbody lighting activated, the machine appears to glide over the ice, drawing full attention—not just during events. New: the party mode for special lighting effects.
Personalization
Color change body cladding 1 color
Wrapping
Service
Battery trolley
The pallet truck with WM attachment enables safe, easy, and quick battery pack removal. We recommend this option for lead-acid batteries during annual maintenance and inspection.
Advantage
The battery trolley simplifies the maintenance and inspection of lead-acid batteries. The battery can be swiftly and comfortably removed from the ice resurfacer, with one person completing the task in less than 10 minutes.
Spare wheel
The spare wheel has the same dimensions as the machine’s tires. It comes assembled with spiked tires, a tube, and a rim.
Advantage
A flat tire can happen, but with the spare wheel, you’re guaranteed to avoid downtime. Simply remove the hubcap, lift the ice resurfacer with a jack, and change the wheel. You’re back in action in no time!
Cross key
Lifting jack
Assembly tool for nozzles ICEplus
This mounting tool allows you to quickly and easily screw or unscrew the ICEplus nozzles. Attach it, turn it 90°, and the nozzle is either secured or loosened.
Advantage
The nozzles of the ICEplus system can be fastened or removed quickly and effortlessly.
Spare parts
Blade
Towel felt
Towel terry
Edger knife
ICEplus S nozzle
ICEplus M nozzle
ICEplus L nozzle
ICEplus X nozzle
