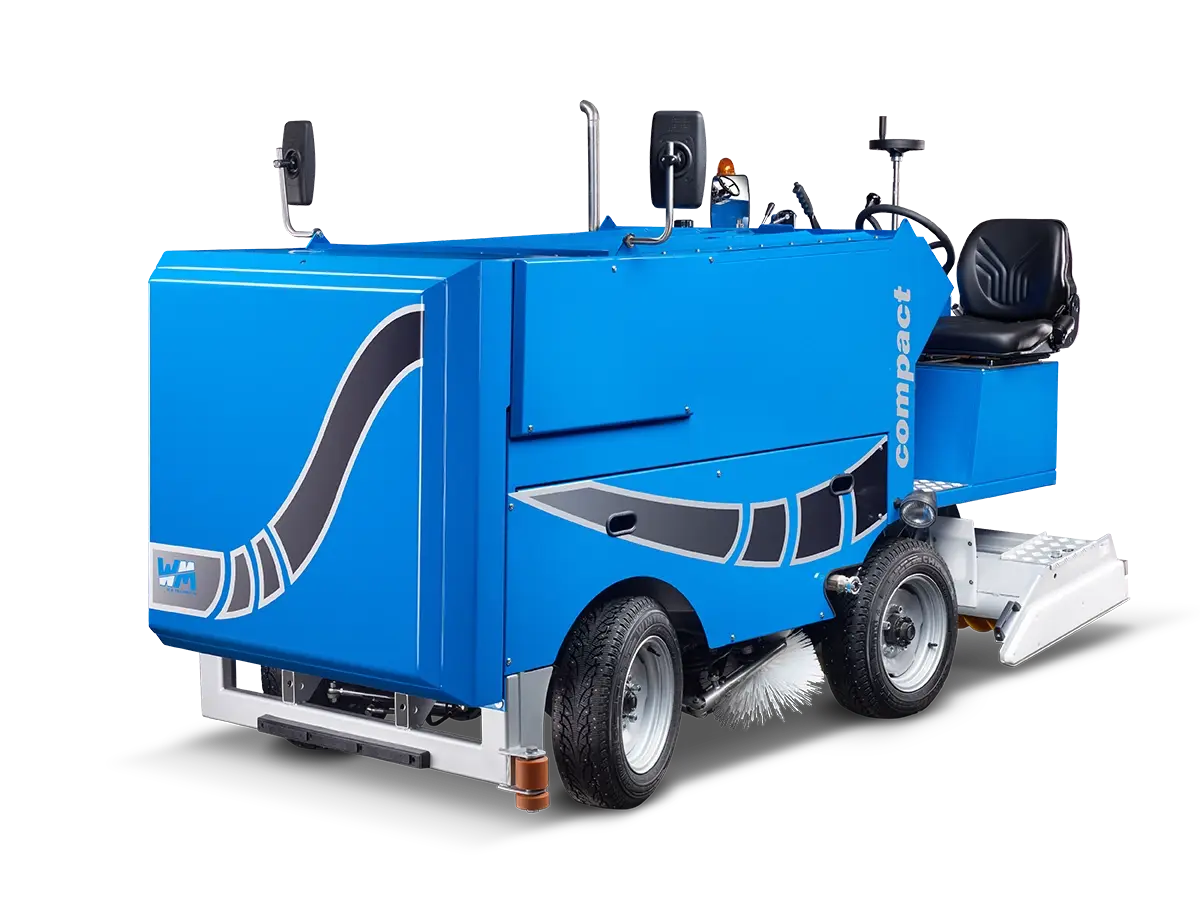

Compact
WM’s compact ice resurfacer for small rinks and surfaces up to 1,200 m².
The Compact is the professional ice resurfacing machine designed for smaller and larger mobile ice rinks. The powerful diesel engine is ideal for outdoor use, while the electric model with an emission-free AC motor is perfect for indoor applications.
Despite its compact size, the robust Compact planes the ice like a full-sized professional machine. It is easy to operate, intuitive to handle, and offers optimal comfort for the driver. It also guarantees professional ice resurfacing on limited ice surfaces, ensuring excellent ice quality for mobile rinks.
Specifications
Electric/Lithium
| Snow tank volume | 1.8 m³ – compacted 2.25 m³ |
| Water tank volume | 600 l |
| Blade width | 1,700 mm |
| Fields of operation | Mobile / event |
| Engine | Asynchronous motor |
| Drive power | 15 kW |
| AC motor controller | AC Curtis |
| Idle revolutions | 900 rpm |
| Drive revolutions | 1,900 rpm |
| Transmission | Continuously adjustable hydraulic four-wheel drive |
| Speed | 0 – 12 km/h |
| Water tank | 600 l (stainless steel) |
| Snow tank | 1.7 m³ – compacted 2.1 m³ |
| Tires | 175 / 70 R 14C 2 rows of spikes |
Diesel
| Snow tank volume | 1.8 m³ – compacted 2.25 m³ |
| Water tank volume | 600 l |
| Blade width | 1,700 mm |
| Fields of operation | Mobile / event |
| Engine | Kohler KDW 1404, 4-cylinder, 1,372 cm³ |
| Total power | 25.60 hp (18.80 kW) at 2,700 rpm |
| Torque | 66.50 Nm / 49 lb-ft at 2,000 rpm |
| Operating speed | 2,600 rpm |
| Fuel tank | 27 liters diesel |
| Drive | Continuously adjustable hydraulic four-wheel drive |
| Speed | 0 – 12 km/h |
| Water tank | 600 l (stainless steel) |
| Snow tank | 1.8 m³ – compacted 2.25 m³ |
| Curb weight | 1,650 kg |
| Tires | 175 / 70 R 14C 2 rows of spikes |
Highlights

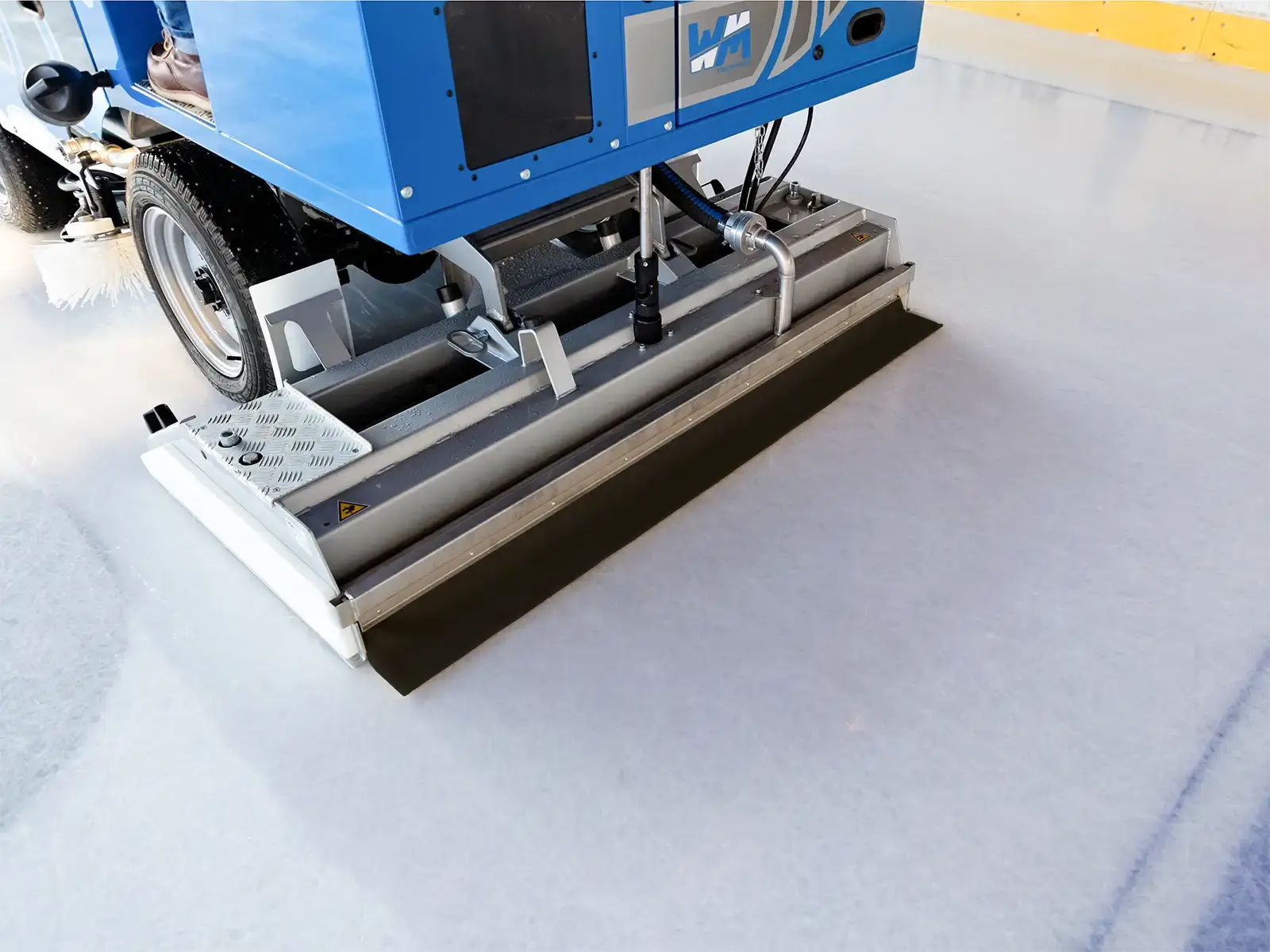

Efficient ice resurfacing with professional quality
Highlights – 600-liter water tank, powerful planing performance, integrated side brush
Small but mighty: The Compact resurfaces ice like a full-sized professional machine!
With its reliable planing sledge, snow breaker, and integrated side brush, the Compact guarantees efficient, professional-grade ice resurfacing. The hydraulically powered brush ensures clean, well-maintained board edges as well.

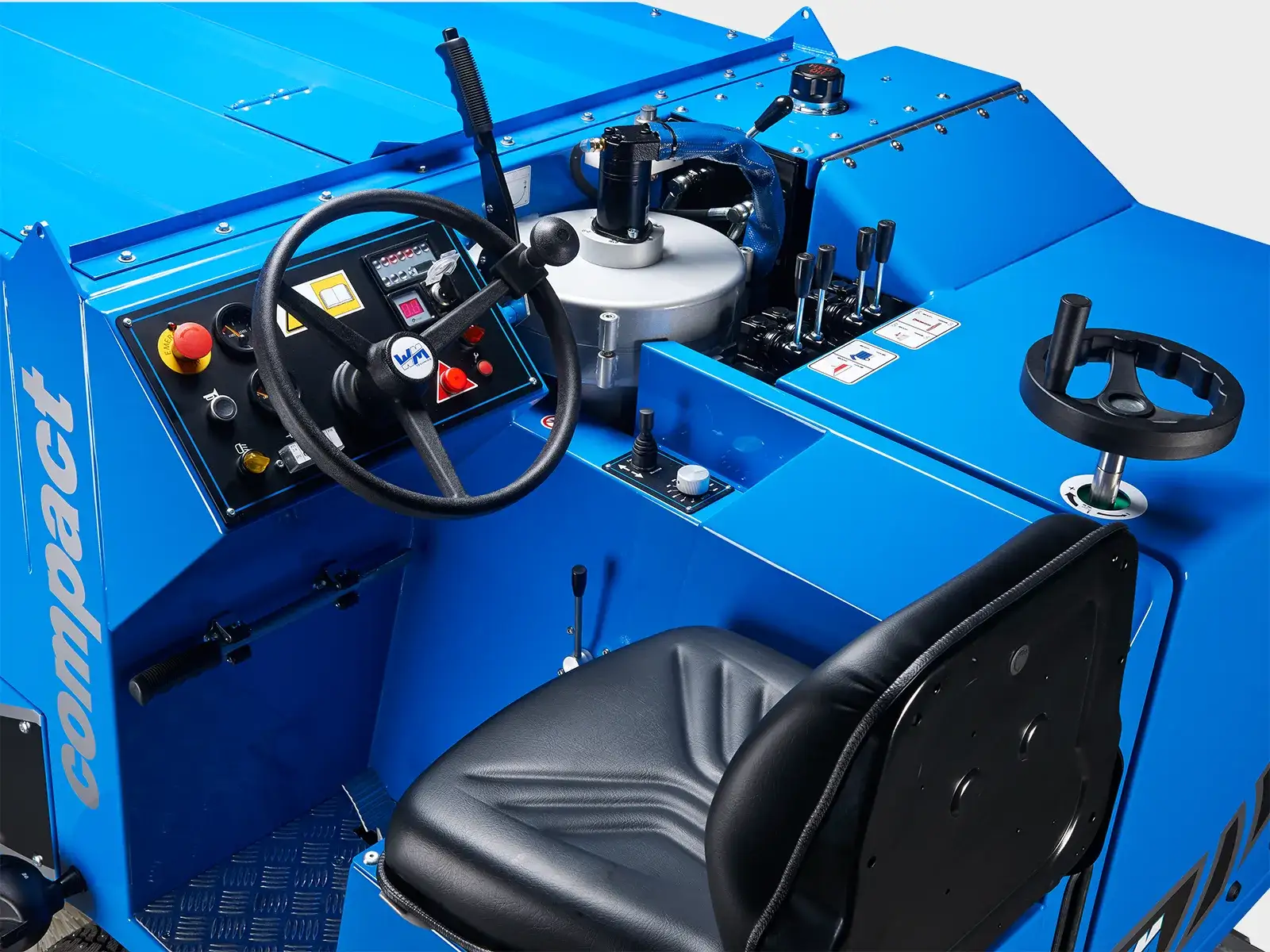

User-friendly operation
Highlights – easy emptying, intuitive controls
The Compact is easy to operate, intuitive to handle, and offers optimal comfort for the driver. The coated snow tank is simple to empty.
The Compact was designed with a focus on comfort and efficiency. Its simple operation and intuitive controls make it accessible even to less experienced users. The snow tank can be emptied quickly and cleanly, thanks to a special coating that prevents snow from sticking. Additionally, the driver’s station is designed to offer clear visibility of the entire work area and controls, ensuring safe and efficient operation.

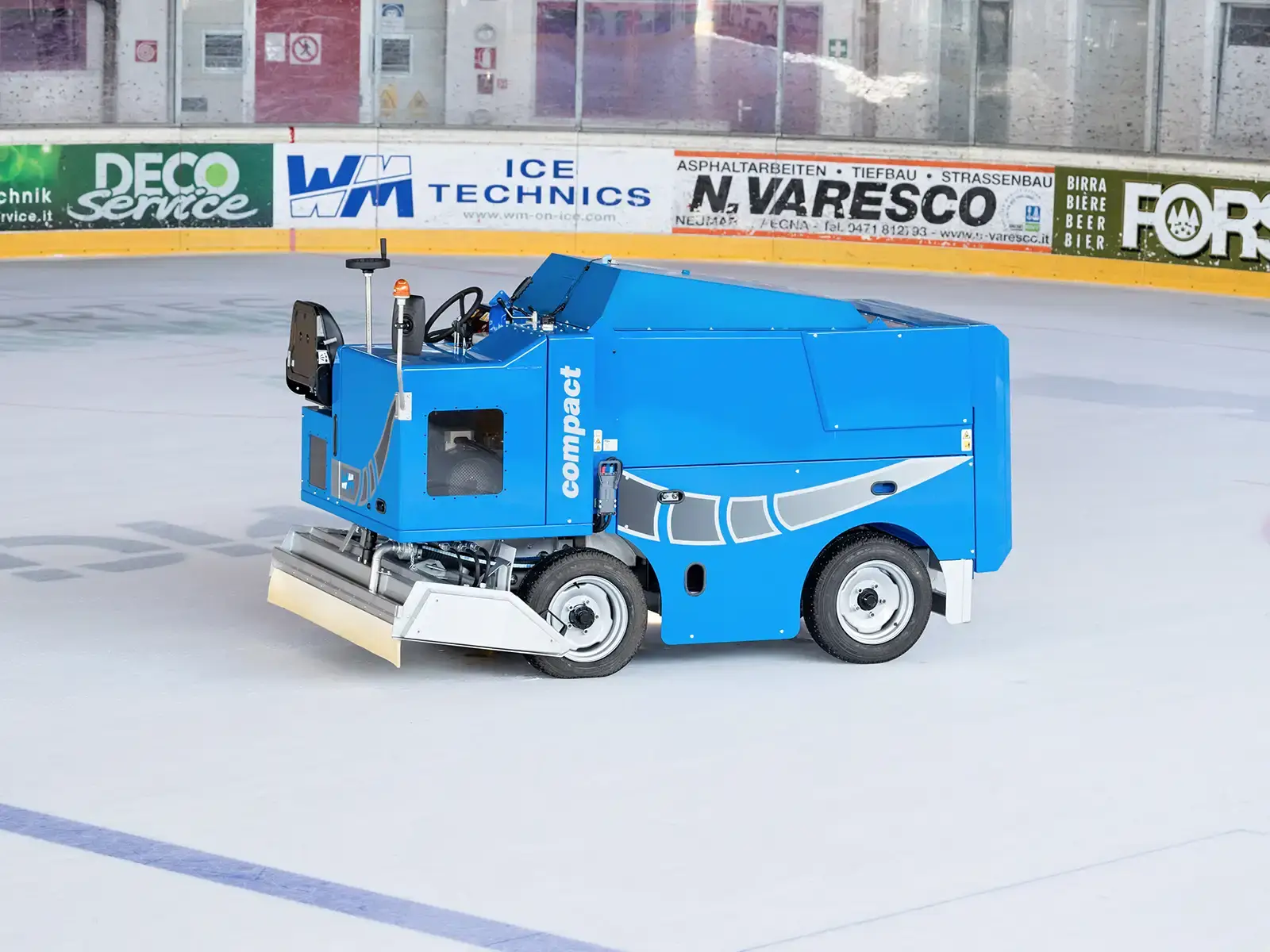

Easy transport
Highlights – easy transport, low weight
With its lightweight design, the Compact can be transported by trailer. Ready for the next event!
Compact is synonymous with versatility and practicality. Its lightweight design makes it the ideal choice for anyone needing a handy ice resurfacer. Easily transported on a simple trailer, it can be moved effortlessly from one event to the next, saving time and avoiding the hassle of complex loading and unloading processes.

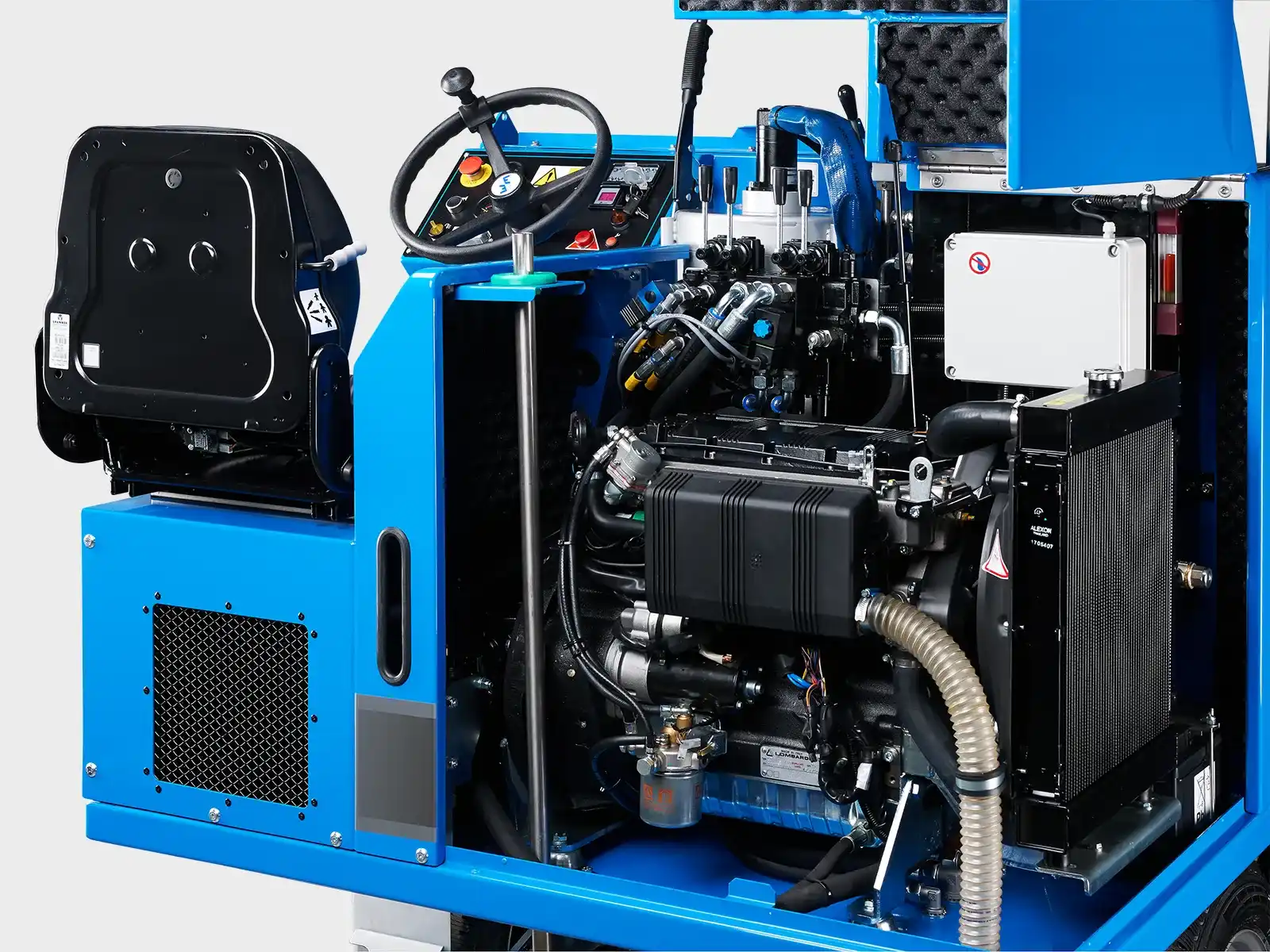

Maintenance
Highlights – easily and quickly accessible, low maintenance costs, energy efficient
The engine compartment is easily accessible without removing parts.
Maintenance is quick and cost-effective.
Optionals
Suction system
Suction manifold
Washing system
Screw conveyor wash system vertical
Screw conveyor wash system horizontal
Overview & security
Side mirror front left
Side mirror front right
Comfort
Driver‘s seat with heated seat
Acquastop valve with time relay
Lightning
Front headlights
Personalization
Custom color body
Painting frame & sledge
Wrapping
Service
Battery trolley
Spare wheel
Cross key
Dignostic cables Controller
Diagnostic cable BMS
Accessories
Groove harrow
Spare parts
Blade
Towel felt
Towel terry
