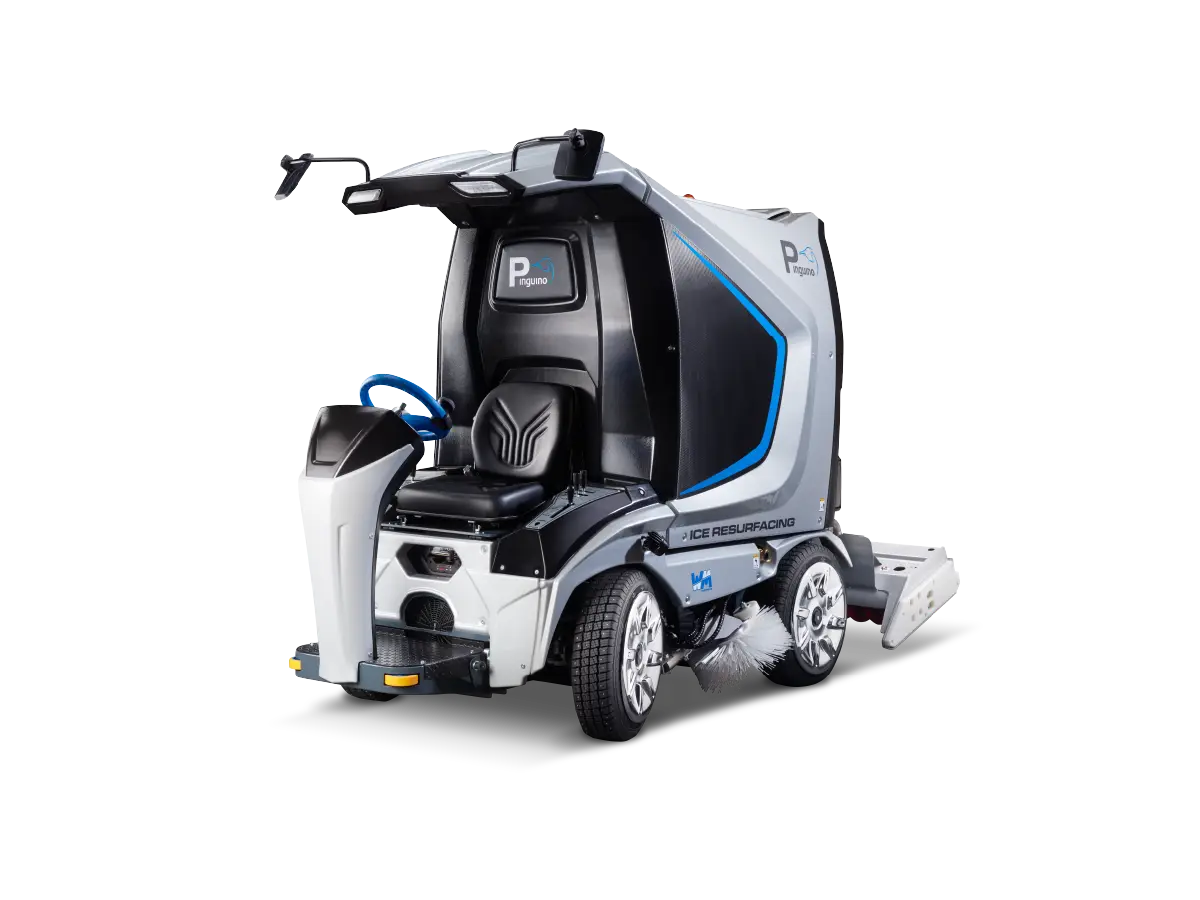

Pinguino
The mini-revolution in ice resurfacing: with its compact size and agility, the Pinguino delivers perfect ice conditions for events and mobile rinks with surfaces up to 800 m².
Whether sporting events or ice skating on a mobile rink, the nimble Pinguino makes cleaning and maintaining smaller ice surfaces effortless. This innovative, compact ice resurfacer (3 meters / 10 feet long, 2 meters / 6.5 feet high) matches the performance of its larger counterparts, planing ice with impressive efficiency and delivering exceptional ice quality. Its front-facing driver’s seat is a standout feature, offering a clear 360° view and making operations significantly more accessible, even for less experienced users.
With its modern design, top-quality construction, and ease of maintenance, resurfacing mobile ice rinks has never been more professional or straightforward!
Specifications
Lithium
| Snow tank volume | 1 m³ – compacted 1.25 m³ |
| Water tank volume | 340 l |
| Blade width | 1,400 mm |
| Fields of operation | Mobile / event |
| Engine | Asynchronous motor |
| Total power | 10 kW |
| Lithium battery | BlueLi 80V – 100Ah |
| Battery charger connection | 230V / 50Hz |
| Autonomy | Approximately 1h 10 min |
| Charging time | Approximately 2h 40 min |
| Curb weight | 1,250 kg |
| Water tank | 340 l |
| Snow tank | 1 m³ – compacted 1.25 m³ |
Petrol / Gasoline
| Snow tank volume | 1 m³ – compacted 1.25 m³ |
| Water tank volume | 340 l |
| Blade width | 1,400 mm |
| Fields of operation | Mobile / event |
| Engine | Honda GX690RH, 2-cylinder, 688 cm³ |
| Total power | 16.5 kW / 22.1 hp at 3,600 rpm |
| Curb weight | 1,100 kg – basic outfit |
| Water tank | 340 l |
| Snow tank | 1 m³ – compacted 1.25 m³ |
| Fuel tank | 15 l |
Highlights

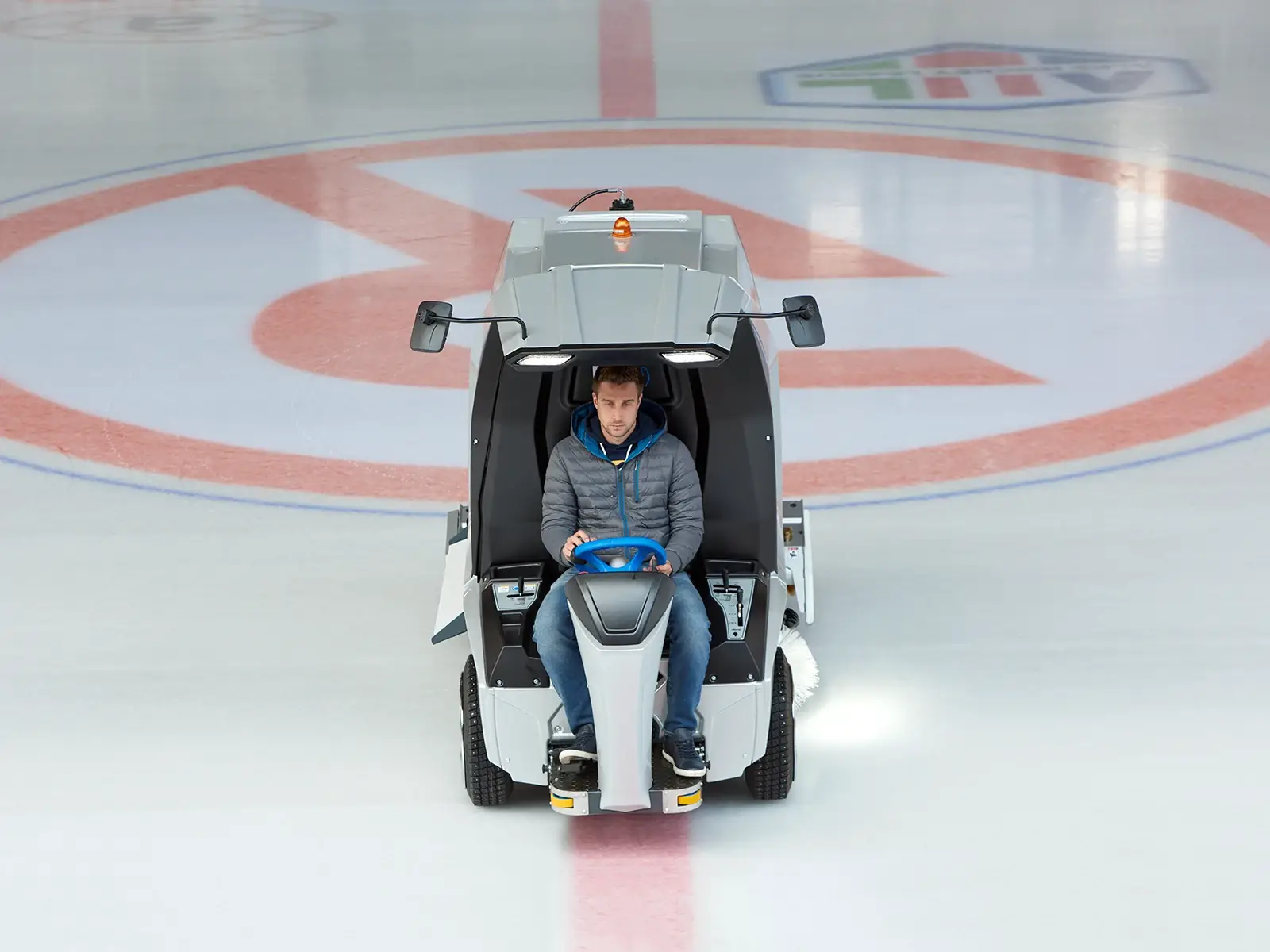

Front driver's seat
Highlights – comprehensive visibility, comfortable seating position, easy maneuverability
Ready, sit, go! The Pinguino features a front driver’s seat, just like a car, making it easier to operate, even for less experienced users.
The front seating position provides a complete field of view, better peripheral vision, and easier maneuvering. This enhances safety for people, the machine, and the sports facility.
Blade change
Highlights – easy & fast, maximum safety, consistently high ice quality
Changing the blade is quick and easy – no need to remove the sledge. Tilt it up and remove the blade. Done!
You can quickly and safely change the blade in just a few simple steps. This allows for swift replacement, ensuring consistently high ice quality throughout the season.

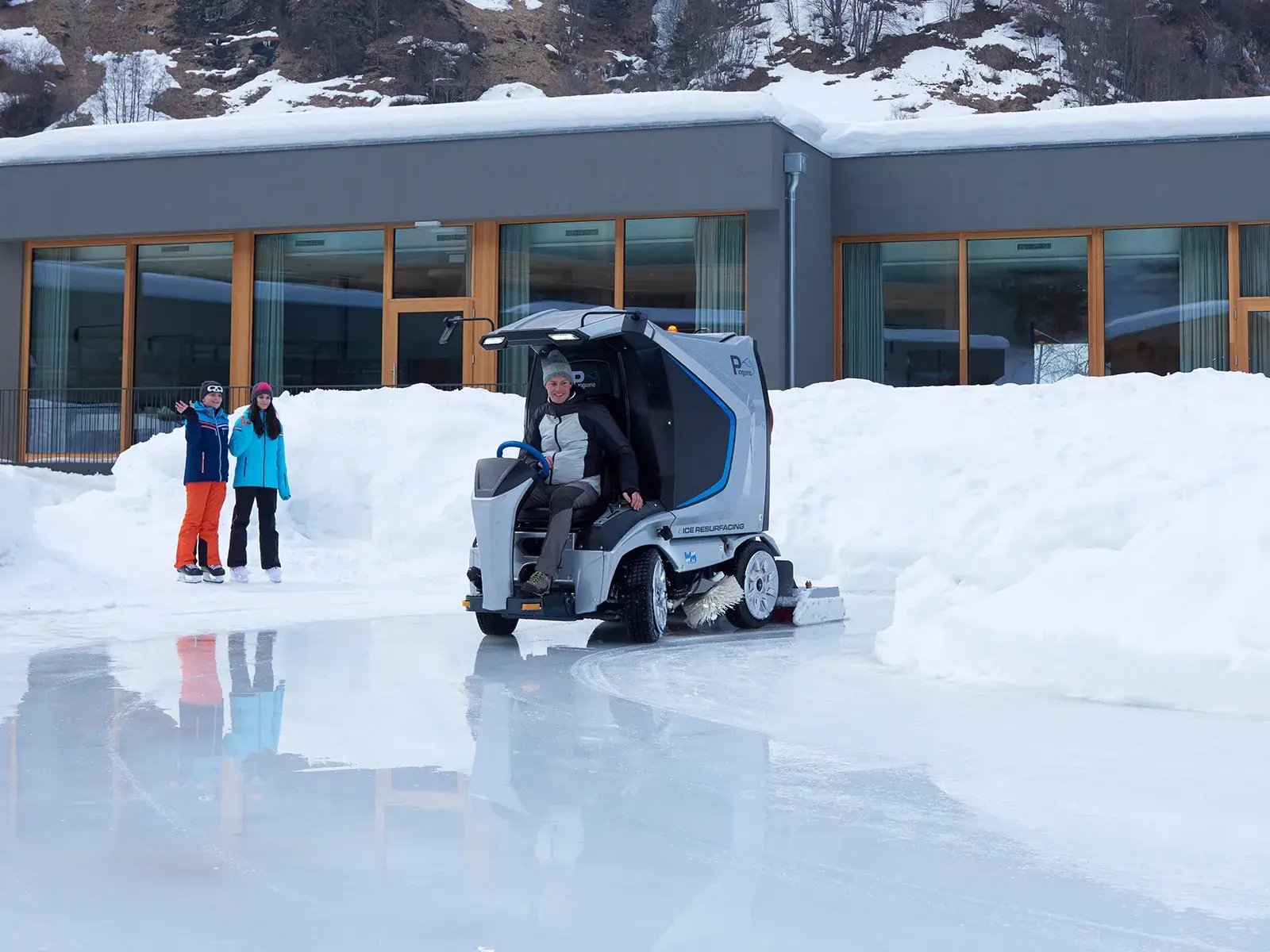

Perfect ice resurfacing
Highlights – 340 l of water, powerful planing performance, easy to empty
Though compact, the Pinguino planes ice like a full-sized professional machine, ensuring optimal ice quality even on mobile rinks. The optional brush accessory also keeps edges clean.
Sledge
Mechanical blade adjustment
Brush
Open snow tank

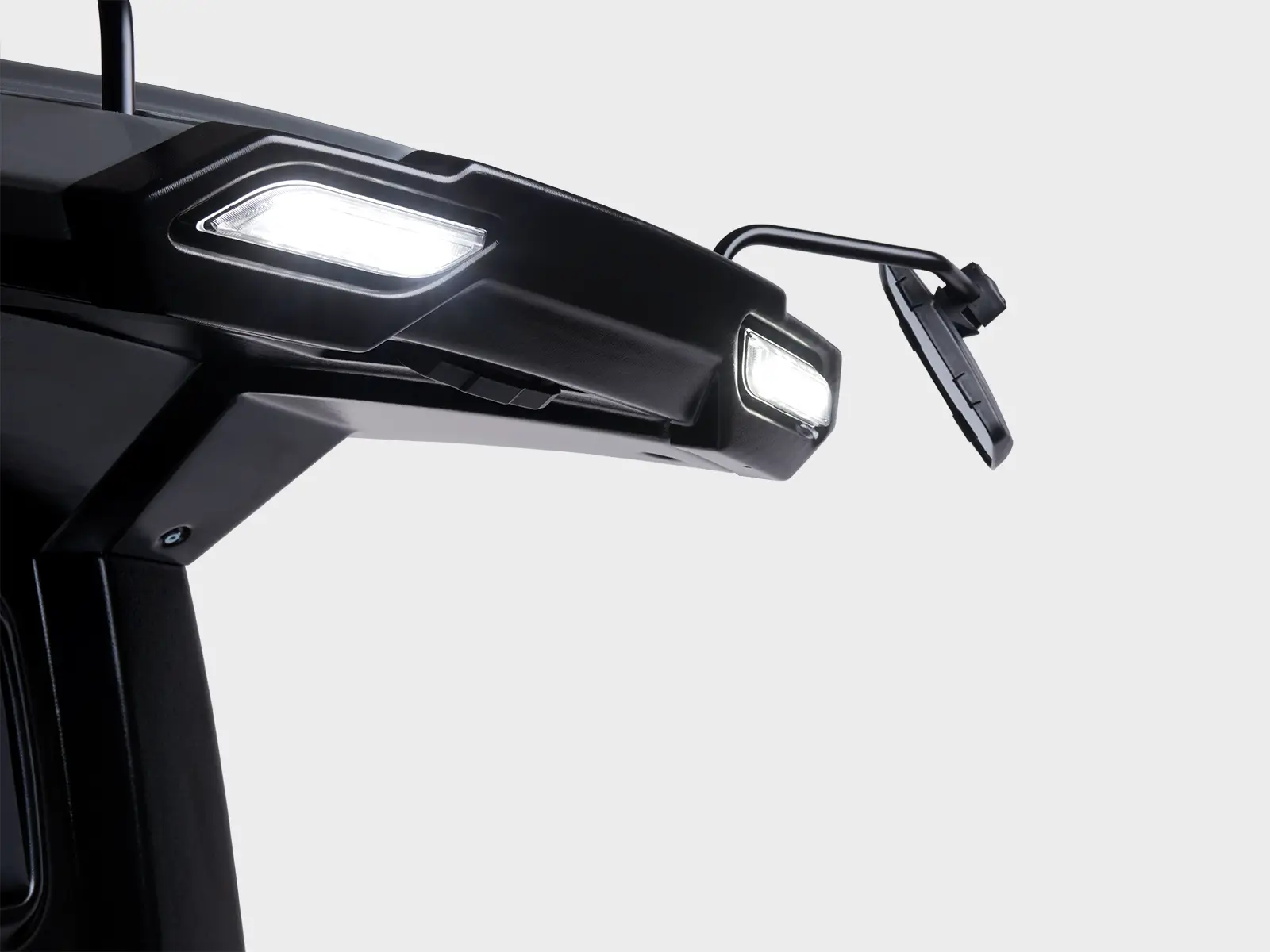

Lighting
Highlights – energy efficiency, perfectly integrated headlights, excellent visibility
The combination of LED lights and powerful headlights guarantees optimal visibility at all times.
Front light
Side work light
Flashing warning light
Rear lighting

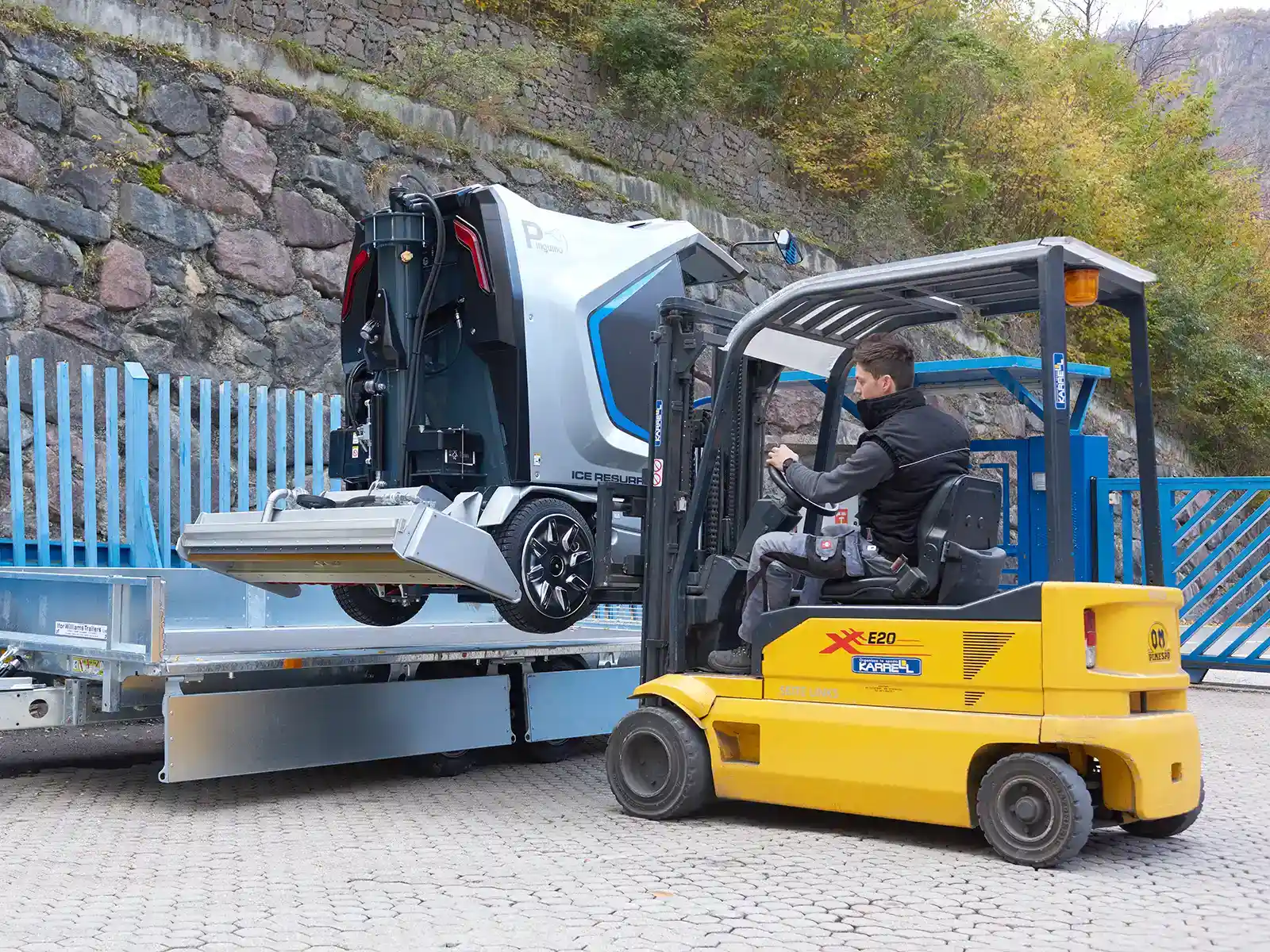

Easy transport
Highlights – easy transport, space-saving, lightweight
Got another event coming up? The Pinguino’s lightweight design and fork pockets make it easy to transport with a forklift or trailer.

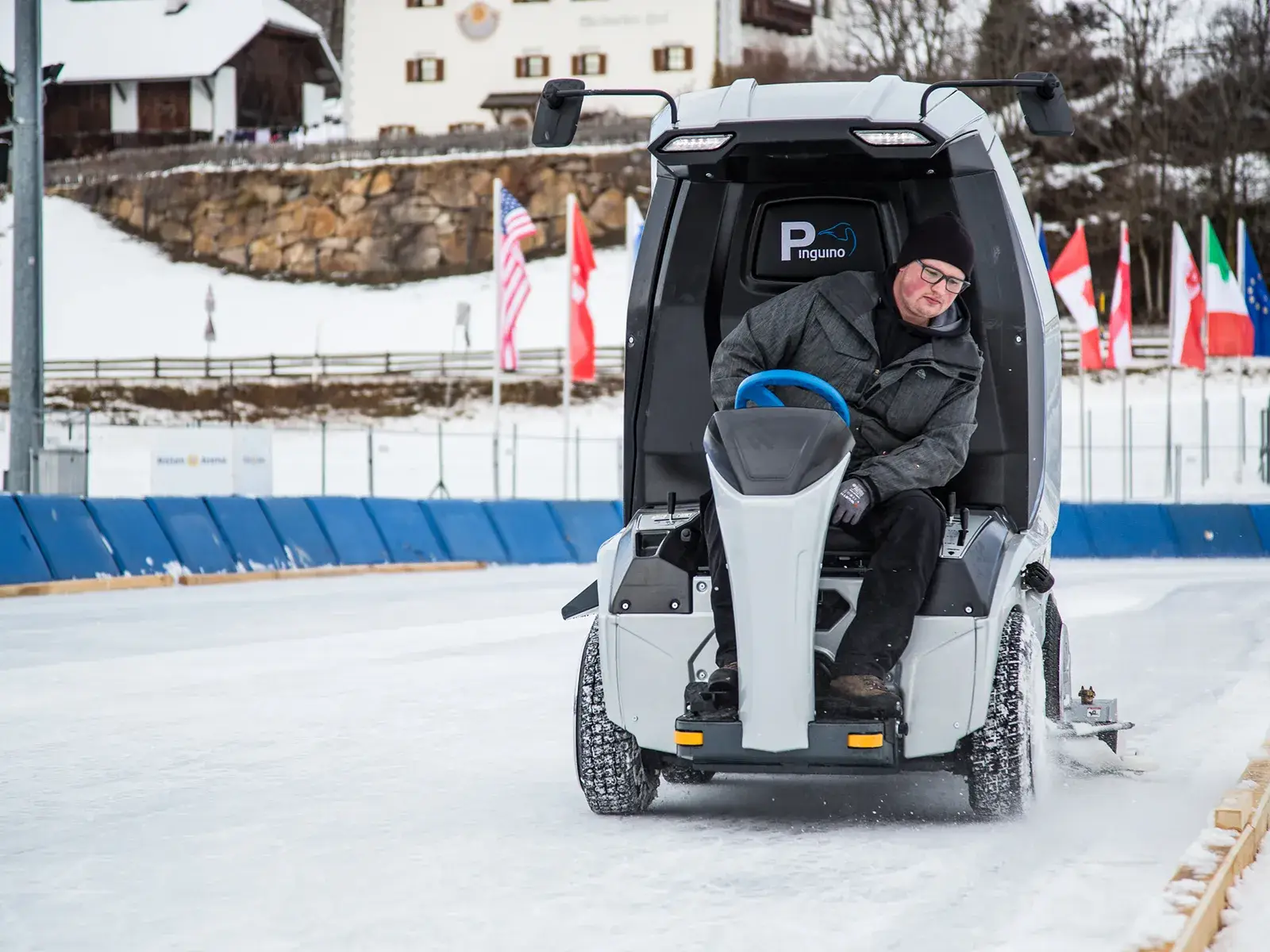

Simple operation
Highlights – mobile ice rinks & frozen lakes, training facilities, sporting events
The Pinguino is incredibly user-friendly. Its intuitive design and simple controls make it easy for inexperienced drivers to operate.
Crystal-clear results like the pros: With the Pinguino, nothing stands in the way of safely using your perfectly resurfaced ice.

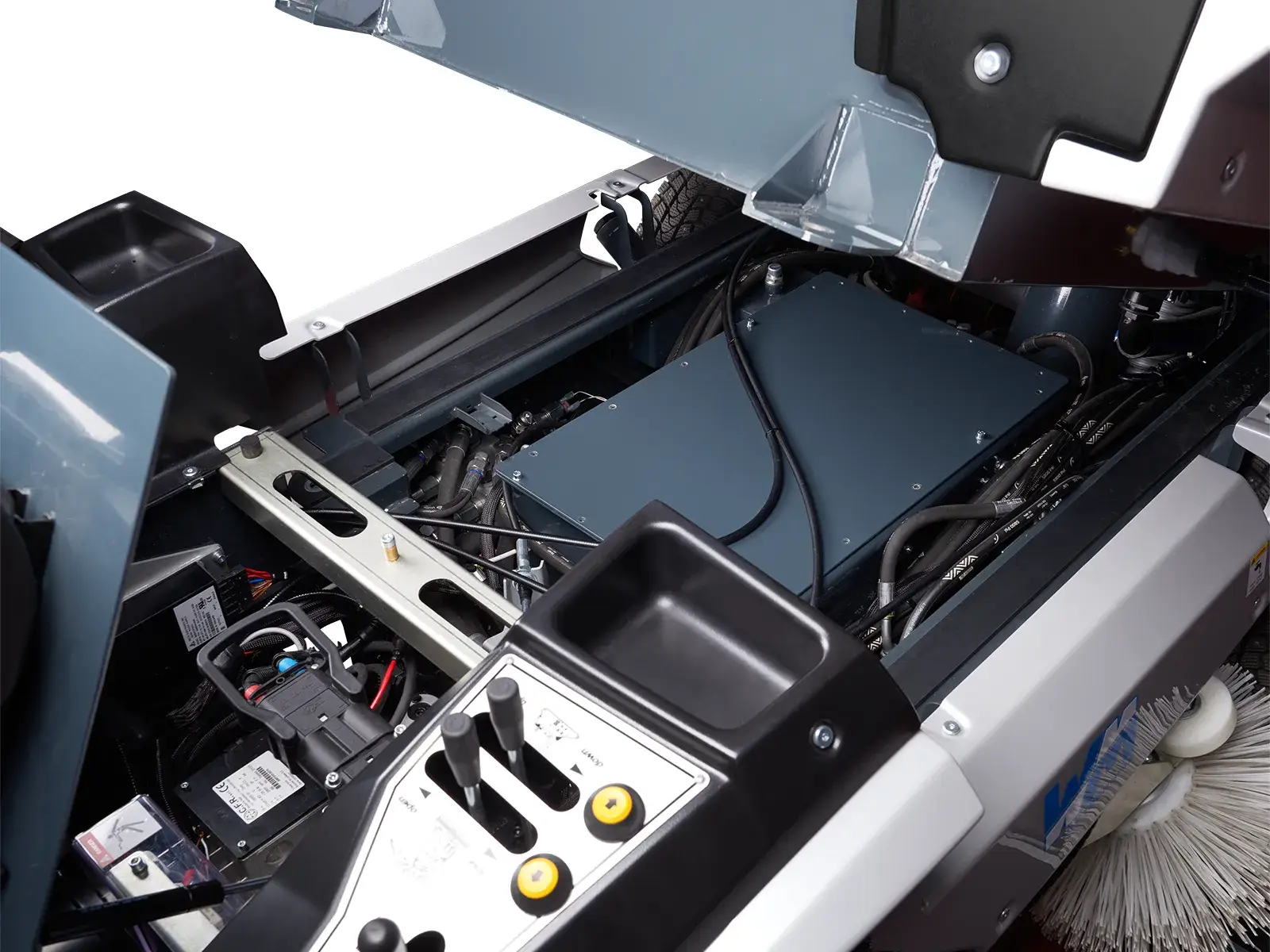

Convenient maintenance
Highlights – easily accessible engine compartment, low maintenance costs, faster maintenance service
All machine components are easily accessible without the need to remove parts, making maintenance quick, simple, and very cost-effective, keeping operating costs to a minimum.
Tiltable seat
Hydraulic oil level indicator
Easy maintenance
Easily accessible engine compartment
Optionals
Washing system
Screw conveyor wash system vertical
Screw conveyor wash system horizontal
Dasher board processing
Brush
Overview & security
Side mirrors front, left & right
Rearview camera
Protective guard for board guide rollers
Comfort
Hydraulic blade adjustment
Slide extension
Water tank signage
Conveyor screw overload warning system
Aquastop valve with time relay
Lightning
Front & working lights
Flashing warning light
Personalization
Custom wrap 4c digital print
Service
Spare wheel 12“
Diagnostic cable Controller
Diagnostic cable BMS
Spare parts
Blade
Towel felt
Towel terry
